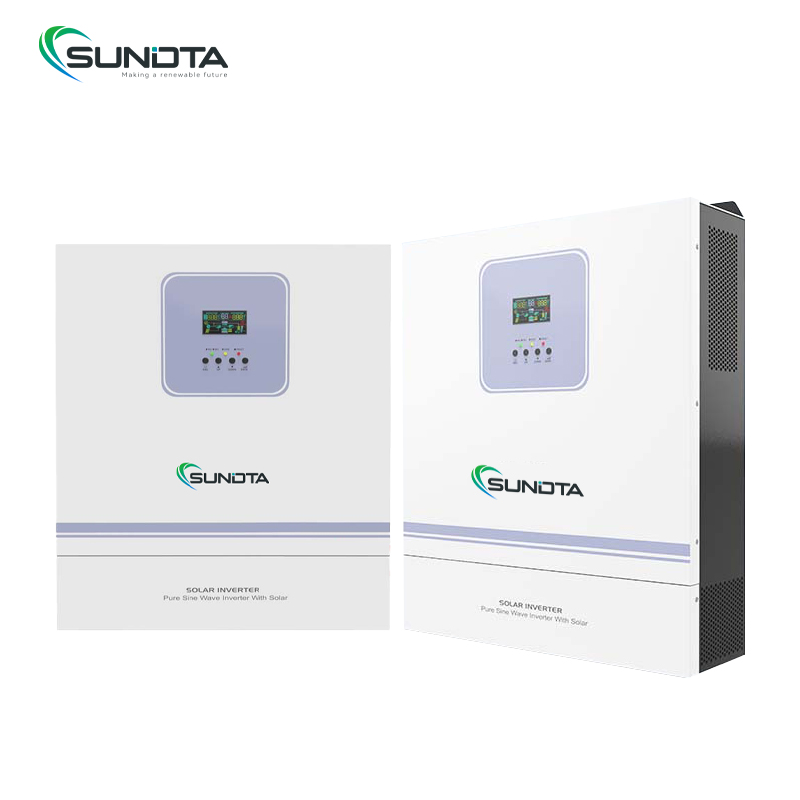

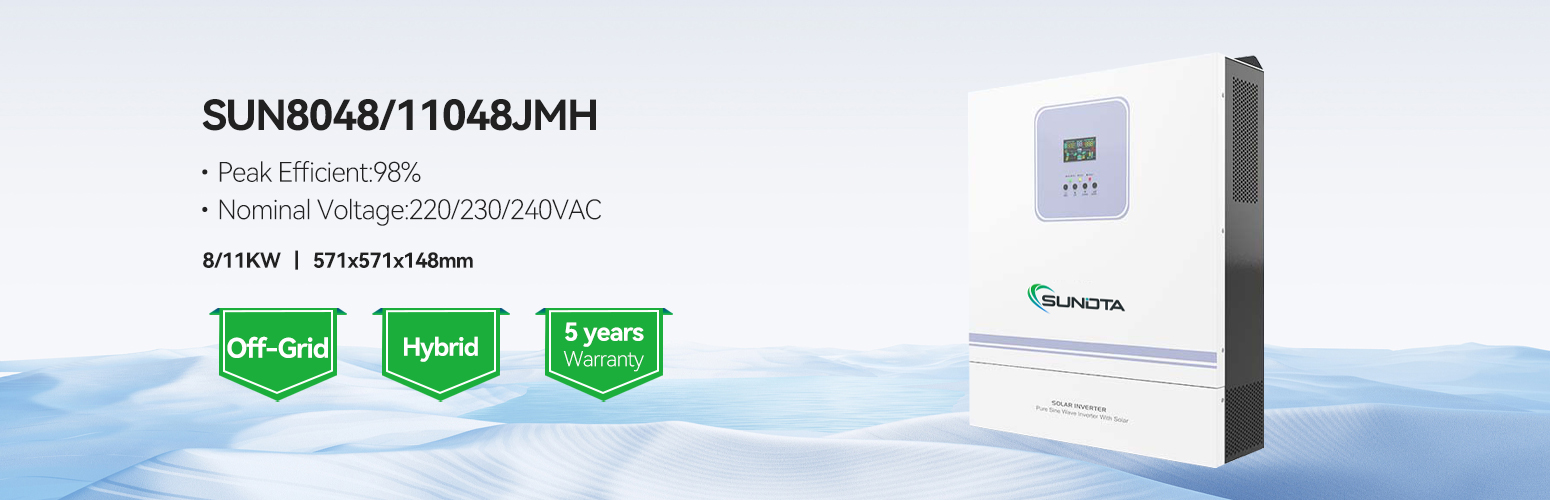

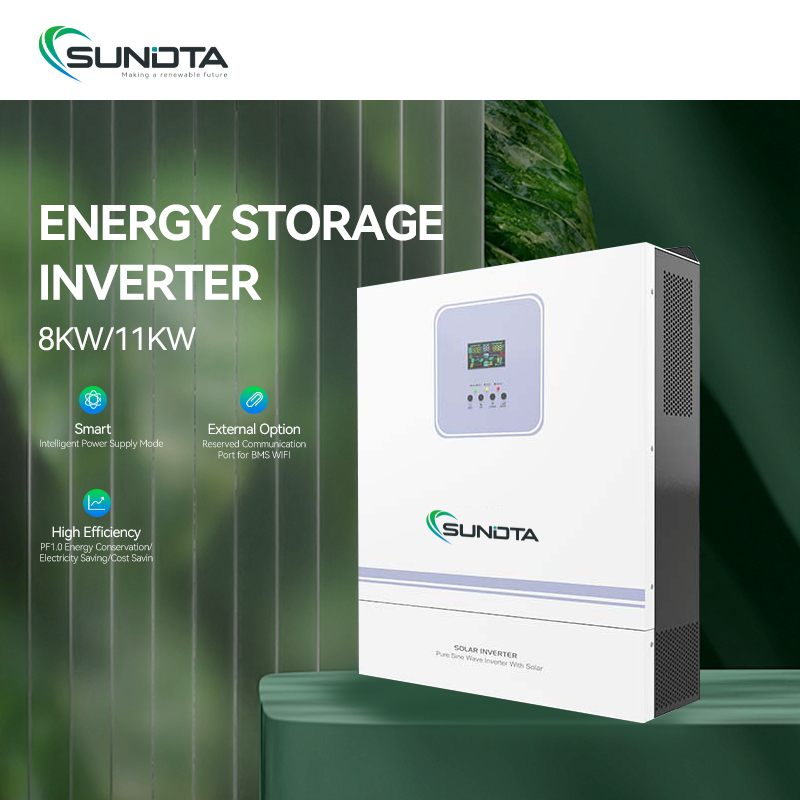

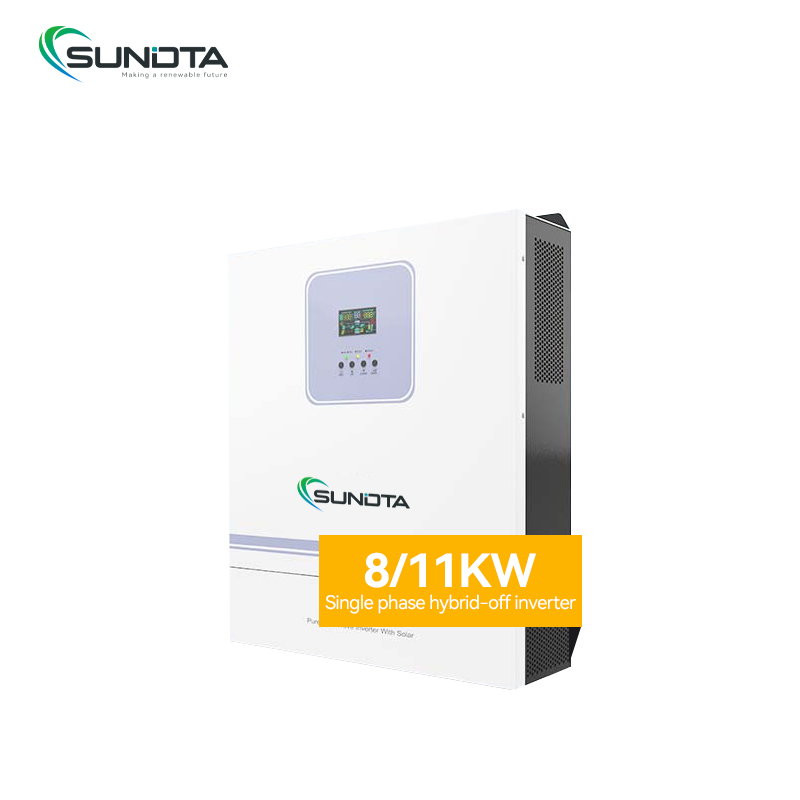

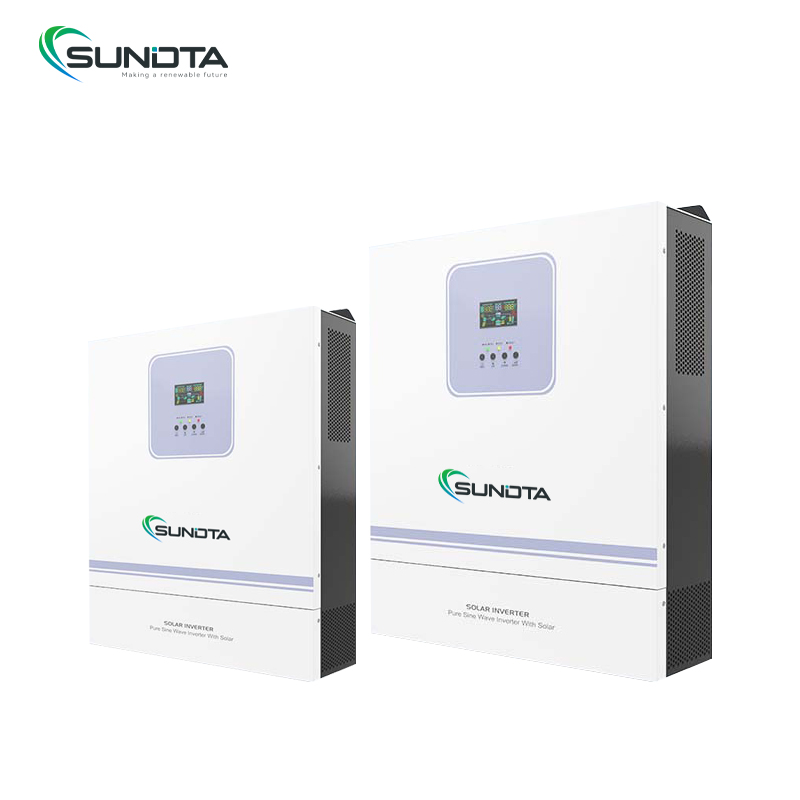

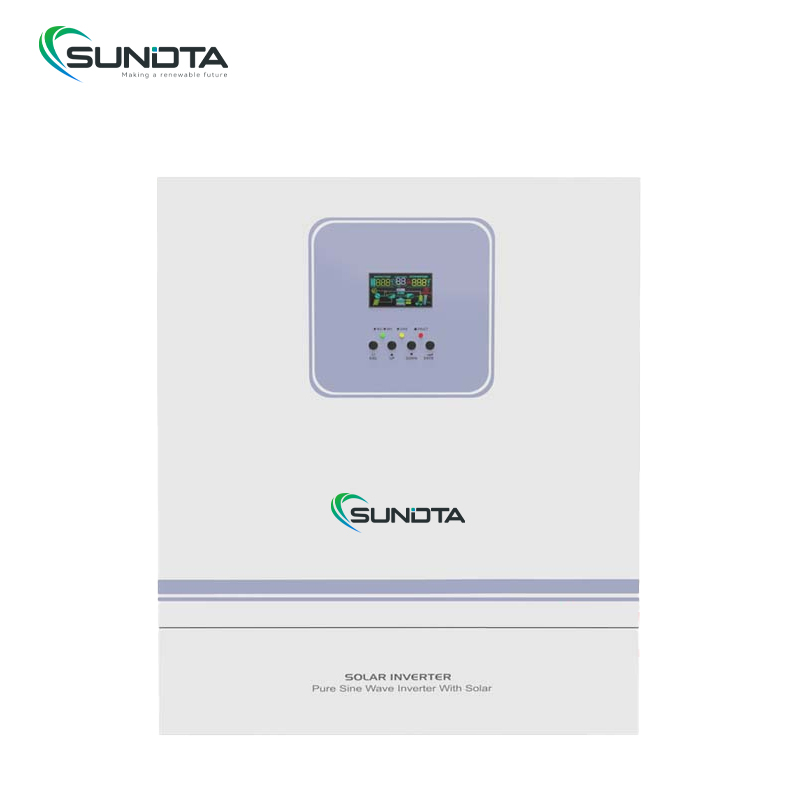

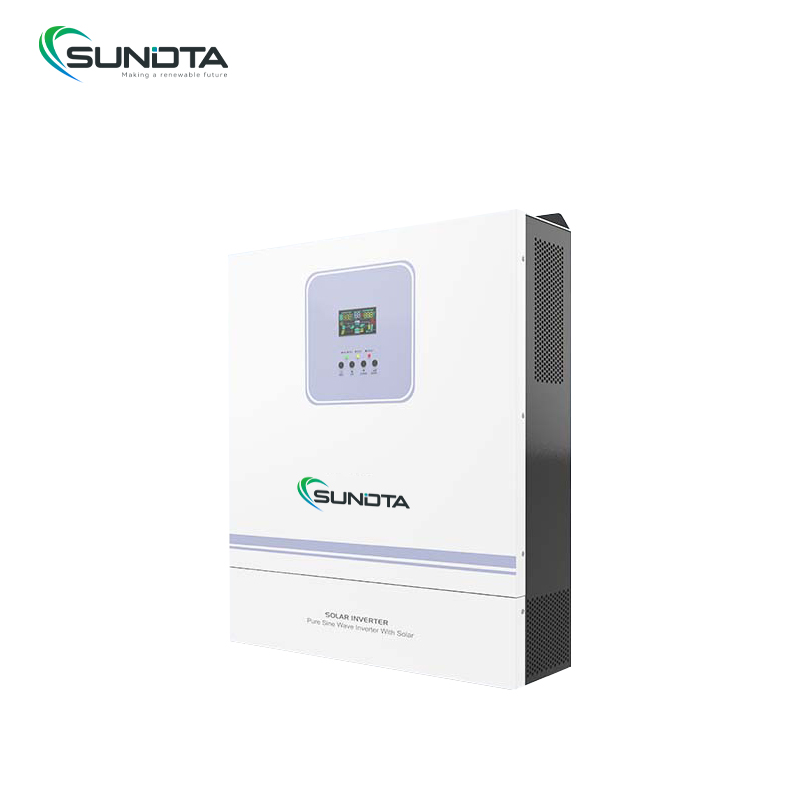

8Kw 11Kw Hybrid /Off-Grid Inverter

8Kw 11Kw Hybrid /Off-Grid Inverter

48v 8Kw 11Kw Hybrid /Off-Grid Inverter

hybrid Inverter

48v 8Kw 11Kw Hybrid /Off-Grid Inverter

Model	SUN8048JMH
Nominal Voltage	220/230/240VAC
Voltage Range	90-280VAC3V(Inverter Mode) 170-280VAC3V(UPSMode)
Frequency	50-60Hz Auto sensing
Rated Output Power	8000W
Output Voltage(Ac)	220/230]240VAC±5%
Output Frequency	50/60Hz±0.1%
Waveform	Pure sine wave
Transfer time(AC to DC)	10ms for Computer Equipment, 20ms for Household Equipment
Peak Power	16000VA
Overload Capacity(Battery Mode)	21s@105%~150%Load； 11s@150%~200%Load； 400ms@>200%Load
Peak Efficiency(Battery Model)	98%
Norminal Voltage	48VDC
constant charging Voltage	56.4VDC
Float Charging Voltage	54VDC
Pv Charging Way	MPPT
Max PV Input Power	2*4000W
MPPT Controller Voltage	90-500VDC
MAX PV Input Voltage	500VDC
MAX Pv Charge Current	120A
MAX AC Charge Current	60A
MAX Charge Current	120A
LCD Display	AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage. Output Frequency, Battery Voltage,Load Current,etc.
RS232	5PIN/Pitch2.0mm
Expansion Slot Communication Interface	2x5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFl,etc
Parallel Interface	Yes
Operating Temperature	0-40°C
Humidity	20%~95%(Non-condensing)
Storage Temperature	-15~60°C
Altitude	<1000m
Noise(dB)	≤50db

Features：

PF1.0,High Efficiency

Lower Consumption

BMS function for lithium battery

Slim Body,Convenient Installation And Transportation

Battery Reverse Connection Protection with Fuse Switch, SaferInstallation

Energy Conservation/Environmental Protection/Electricity Saving/cost Saving

Lithium Battery Auto-restart Function, More Convenient forLithium Battery Charging

Intelligent Power Supply Mode,Intelligent Distribution of SolarPanel/Mains/BatteryPower Shares

Utility Charging Voltage/PV Charging Voltage Adjustable ,Match Different Battery Charging Requirements

Model		SUN11048JMH
	Nominal Voltage	220/230/240VAC
	Voltage Range	90-280VAC±3V（Inverter Mode) 170-280VAC±3V（UPS Mode）
	Frequency	50Hz/60Hz(Auto Adaptive)
Output	Rated Power	11000W
	Output Voltage	220/230/240VAC±5%
	Frequency	50/60Hz±0.1%
	Waveform	Pure Sine Wave
	Transfer Time(Adjustment)	10ms typical, 20ms Max
	Peak Power	22000VA
	Overload Capacity(Battery Mode)	1min@102%~110% Load 10s@110%~130% Load 3s@130%~150% Load 200ms@>150% Load
	Peak Efficient（Battery Mode）	98%
Battery	Norminal Voltage	48VDC
	Constant charge voltage（Adjustment）	56.4VDC
	Floating charge voltage（Adjustment）	54VDC
Charger	Maximun PV Input Power	2*5500W
	MPPT Controller Voltage	90-500VDC
	Maximum PV Input Voltage	500VDC
	Maximum PV Charging Current	MPPT 150A
	Maximum AC Charging Current	60A
	Maximum Charging Current	150A
Display	LCD Display	AC input Voltage,AC input frequency,PV Voltage,PV Current,Output Voltage, Output Frequency, Battery Voltage,Load Current,etc.
Interface	RS232	5PIN/Pitch2.0mm
	Expansion slot communication interface	2×5PIN/Pitch2.54mm，Lithium battery BMS communication card、WIFI, etc
	Parallel Interface	Optional，MAX 9PCS
Operating Environment	Operating Temperature	0~40℃
	Humidity	20%~95%（Non-condensing）
	Storage Temperature	-15~60℃
	Altitude	<1000m
	Accoustic Noise(db)	≤50dB

Feature:
•High Frequency,Light Weight
•Output Power Factor: PF=1
•Support lithium battery activation wake-upstart function
•Support Parallel operation for capacity expansion
•Real time display of load actual power
•Pure wave output, adapt with different load
•Output short circuit protection
•Optional WIFI remote monitoring
•Specification adjustment
