Model:
STM455-72M-T6SRated Power:
455WDimension:
2094*1038*35mmWeight:
28KgNo. Of Cells:
72Cell Type:
166mm Perc BifacialModule Color:
SliverEfficiency:
23%Certification:
CE/TUVWarranty:
25 Years

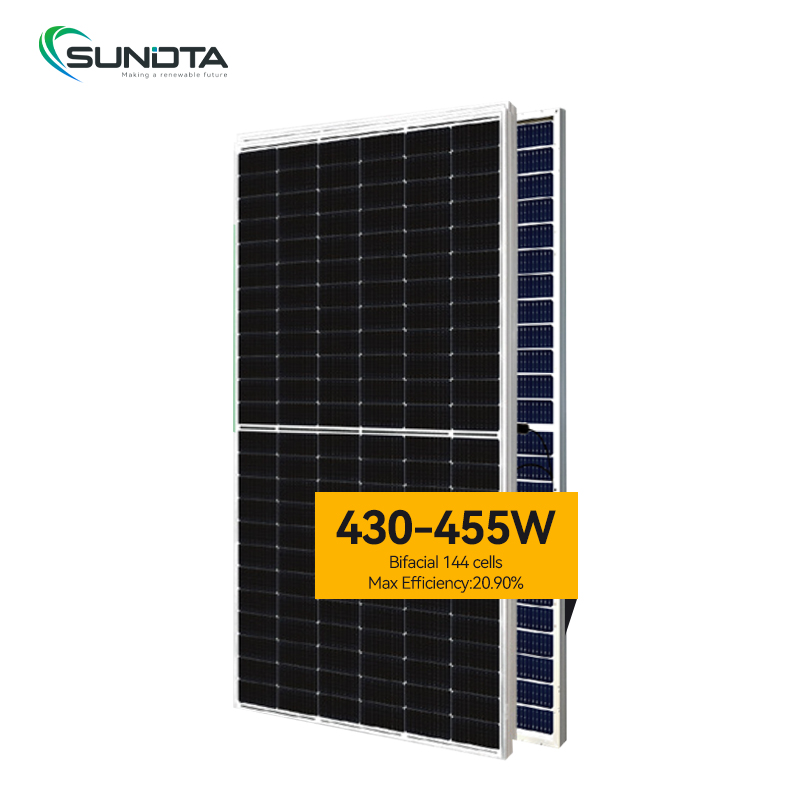

China half cell pv module 450watt solar panel for solar system
pv module 450watt solar panel with15 Years Warranty for Materials and Processing
shingle roofing solar panel with 25 Years Warranty for Extra Linear Power Output
Excellent low-light power generation effect, ensuring continuous output in cloudy,shading conditions.
Whole process of manufacturing adheres to the green concept, fluorine-free and low-lead.
Minimized micro-cracks with innovative non-destructive cutting Technology.
Selection of packaging materials with excellent sealing More advanced cell processing technology to reduce doping to ensure highly PID resistance.
Sand blowing test, salt mist test and ammonia test passed to adapt with harsh environments.
Mechanical performance up to 5400 Pa positive load and 2400 Pa.Negative load.
| Cell Orientation | 144 (6x24) | ||
| Dimension | 2094x1038x35mm | ||
| Weight | 28kg | ||
| Glass | Front Glass:2.0mm AR Coating Tempered Glass | Back Glass:2.0mm Glazed Semi-tempered Glass | |
| Frame | Anodized aluminum alloy frame | ||
| Junction Box | IP68,three diodes | ||
| Output Cable | Portrait 300mm/Landscape 1200m/Customized | ||
| Packaging | 35pcs/pallet, 770pcs/40'HQ |
| Maximum Power(Pmax) | 430w | 435w | 440w | 445w | 450w | 455w |
| Maximum Power Voltage(Vmp) | 40.7V | 40.9V | 41.1V | 41.5V | 41.7V | 38.20V |
| Maximum Power Current(Imp) | 10.57A | 10.64A | 10.71A | 10.78A | 10.85A | 10.92A |
| Open-circuit Voltage(Voc) | 48.50V | 48.70V | 48.90V | 49.10V | 49.30V | 49.50V |
| Short-circuit Current(lsc) | 11.31A | 11.39A | 11.46A | 11.53A | 11.60A | 11.66A |
| Module Efficiency(%) | 22.60% | 22.80% | 23.00% | |||
