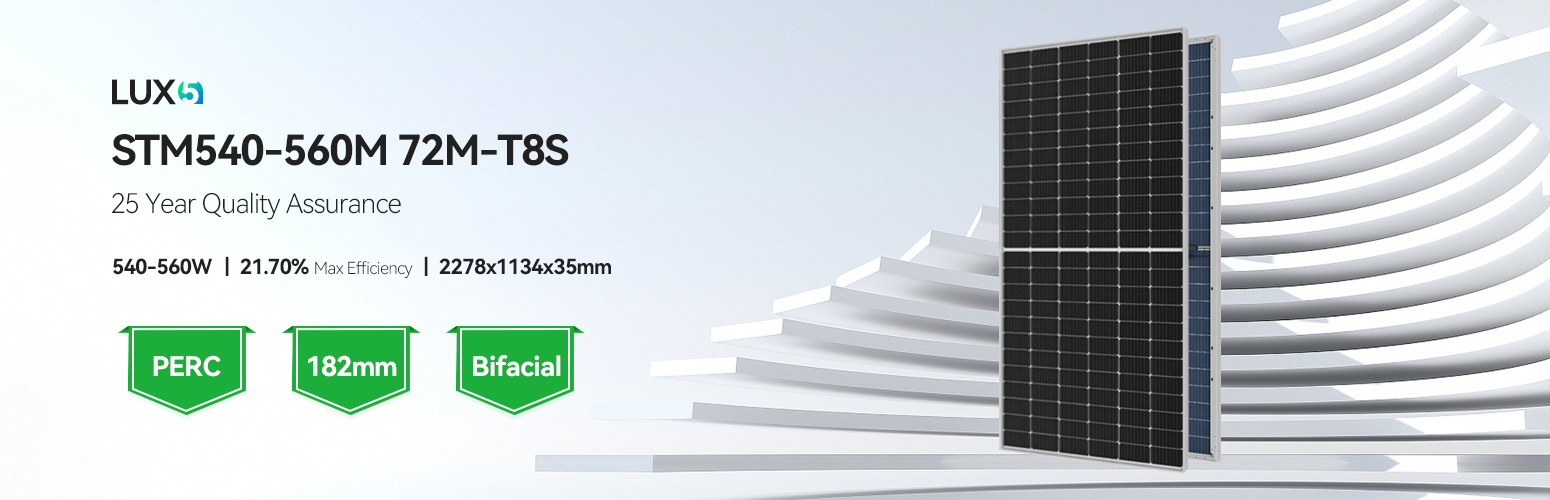

Model:
STM560-72M-T8SRated Power:
560WDimension:
2278x1134x35mmWeight:
31.8KgNo. Of Cells:
144Cell Type:
182mm Perc BifacialModule Color:
sliverEfficiency:
21.7%Certification:
CE/TUVWarranty:
25 Years

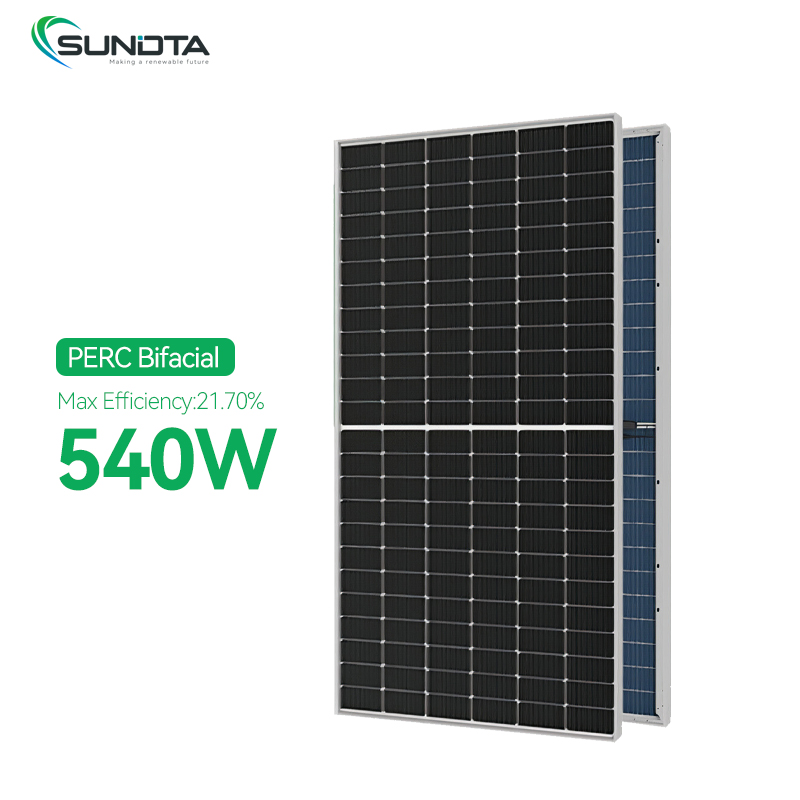

540w 545w 550w 555w 560w solar panel eu stock

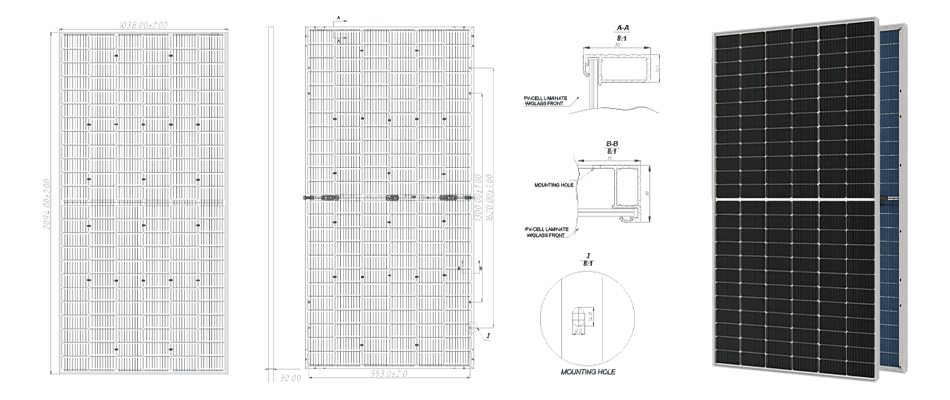

| Cell Orientation | 144(6x24) |
| Dimension | 2278x1134x30mm |
| Weight | 31.8kg |
| Glass |
Front Glass:2.0mm AR Coating Tempered Glass Back Glass:2.0mm Glazed Semi-tempered Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable |
4mm2, Portrait 300mm/Landscape |
| Packaging | 36pcs/pallet,720pcs/40'HQ |
| STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | STC | NOCT | |
| Maximum Power(Pmax) | 540w | 402W | 545W | 406W | 550W | 410W | 555W | 414W | 560W | 418W |
| Maximum Power Voltage(Vmp) | 41.64V | 38.80V | 41.80V | 39.00V | 41.96V | 39.10V | 42.12V | 39.20V | 42.28V | 39.30V |
| Maximum Power Current(Imp) | 12.97A | 10.36A | 13.04A | 10.41A | 13.11A | 10.47A | 13.18A | 10.55A | 13.25A | 10.63A |
| Open-circuit Voltage(Voc) | 49.60V | 46.70V | 49.76V | 46.80V | 49.92V | 47.00V | 50.08V | 47.10V | 50.24V | 47.20V |
| Short-circuit Current(lsc) | 13.86A | 11.17A | 13.93A | 11.23A | 14.00A | 11.28A | 14.07A | 11.34A | 14.14A | 11.40A |
| Module Efficiency(%) | 20.90% | 21.10% | 21.30% | 21.50% | 21.70% | |||||
| Maximum Power Gain(Pmax gain) | 5% | 10% | 15% | 20% | 25% |
| Maximum Power (pmax) | 567W | 594W | 621W | 648W | 675W |
| Maximum Power Voltage(Vmp) | 41.64V | 41.64V | 41.64V | 41.64V | 41.64V |
| Maximum Power Current(lImp) | 13.62A | 14.27A | 14.91A | 15.56A | 16.21A |
| Open-circuit Voltage(Voc) | 49.60V | 49.60V | 49.60V | 49.60V | 49.60V |
| Short-circuit Current(lsc) | 14.66A | 15.35A | 16.05A | 16.75A | 17.45A |
| Fotovoltaic panels 545w with15 Years Warranty for Materials and Processing |
| Good price 550w solar panel with 25 Years Warranty for Extra Linear Power Output |
| Excellent low-light power generation effect, ensuring continuous output in cloudy,shading conditions. |
| Whole process of manufacturing adheres to the green concept, fluorine-free and low-lead. |
| Minimized micro-cracks with innovative non-destructive cutting Technology. |
| Selection of packaging materials with excellent sealing More advanced cell processing technology to reduce doping to ensure highly PID resistance. |
| Sand blowing test, salt mist test and ammonia test passed to adapt with harsh environments. |
| Mechanical performance up to 5400 Pa positive load and 2400 Pa.Negative load. |
