Model:
STM425-54M-T8Rated Power:
425WDimension:
1722x1134x30Weight:
21.5%No. Of Cells:
108Cell Type:
210mm PercModule Color:
BlackEfficiency:
21.7%Certification:
CE/TUVWarranty:
25 Years

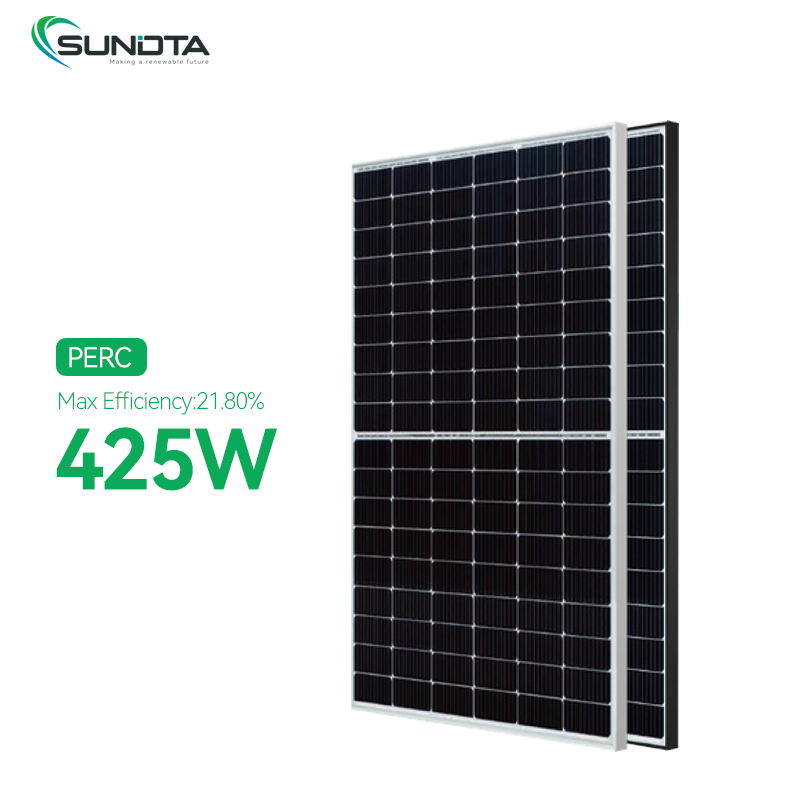

White back perc half cell 410w 420w 425w solar module
| Cell Orientation | 108(6x18) |
| Dimension | 1722x1134x30mm |
| Weight | 21.5kg |
| Glass | 3.2mm AR Coating Tempered Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable |
4mm3,300mm or1200mmLength can be customized |
| Packaging | 36pcs/pallet, 936pcs/40'HQ |
| Maximum Power(Pmax) | 405w | 410w | 415w | 420w | 425w |
| Maximum Power Voltage(Vmp) | 31.24V | 31.43V | 31.64V | 31.83V | 32.03V |
| Maximum Power Current(Imp) | 12.97A | 13.05A | 13.13A | 13.21A | 13.29A |
| Open-circuit Voltage(Voc) | 37.25V | 37.5V | 37.75V | 37.00V | 38.25V |
| Short-circuit Current(lsc) | 13.96A | 13.94A | 14.02A | 14.10A | 14.18A |
| Module Efficiency(%) | 20.70% | 21.00% | 21.3% | 21.50% | 21.70% |
| Maximum Power(Pmax) | 302W | 306W | 310W | 314W | 318W |
| Maximum Power Voltage(Vmp) | 29.2V | 29.3V | 29.6V | 29.8V | 30.00V |
| Maximum Power Current(Imp) | 10.36A | 10.42A | 10.48A | 10.54A | 10.60A |
| Open-circuit Voltage(Voc) | 35.10V | 35.30V | 35.50V | 35.70V | 35.90V |
| Short-circuit Current(lsc) | 11.17A | 11.24A | 11.30A | 11.36A | 11.42A |
| Module Efficiency(%) | 20.70% | 21.00% | 21.30% | 21.50% | 21.70% |
| solar panel eu 420w with15 Years Warranty for Materials and Processing |
| photovoltaic panel 425 watt with 25 Years Warranty for Extra Linear Power Output |
| Excellent low-light power generation effect, ensuring continuous output in cloudy,shading conditions. |
| Whole process of manufacturing adheres to the green concept, fluorine-free and low-lead. |
| Minimized micro-cracks with innovative non-destructive cutting Technology. |
| Selection of packaging materials with excellent sealing More advanced cell processing technology to reduce doping to ensure highly PID resistance. |
| Sand blowing test, salt mist test and ammonia test passed to adapt with harsh environments. |
| Mechanical performance up to 5400 Pa positive load and 2400 Pa.Negative load. |
