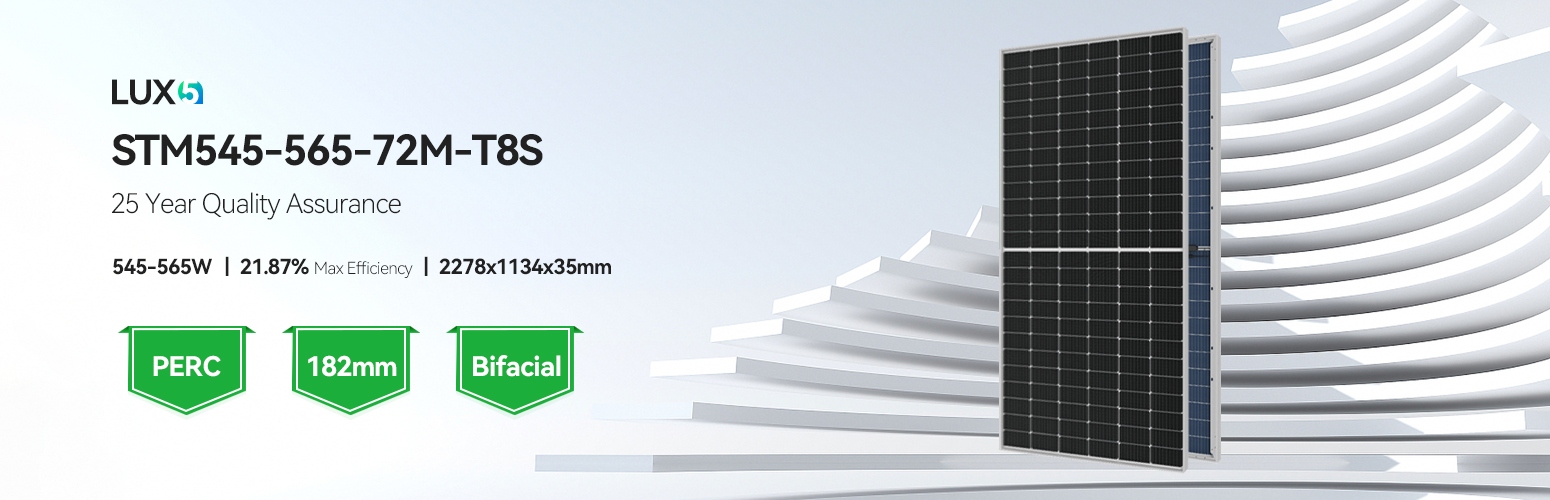

Model:
STM545-565-72M-T8SDimension:
2278x1134x30mmWeight:
31.8kgCell Type:
P typeEfficiency:
21.87%Certification:
CE/TUVWarranty:
15 Years

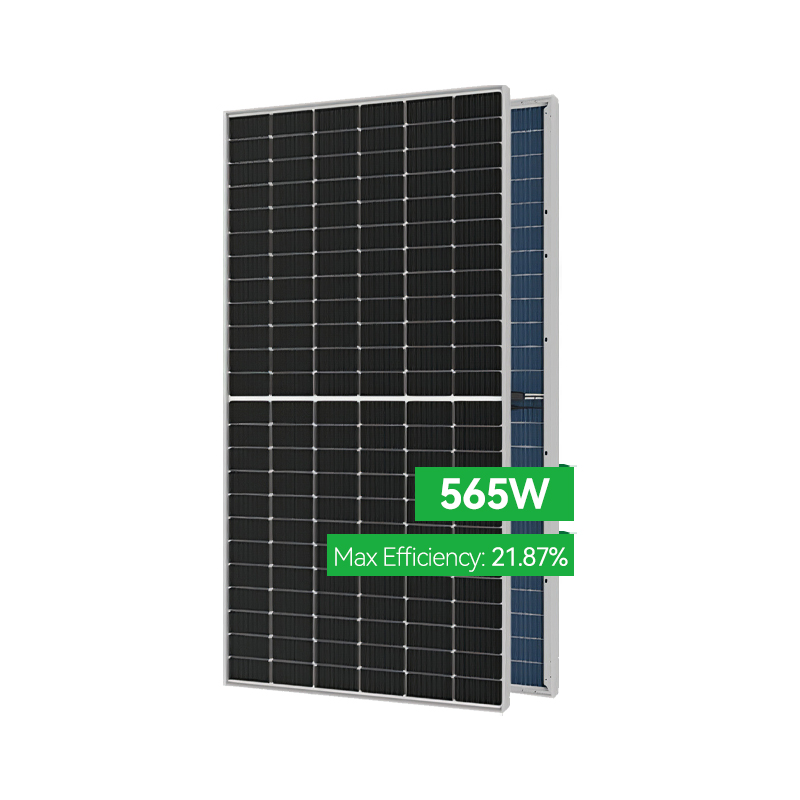

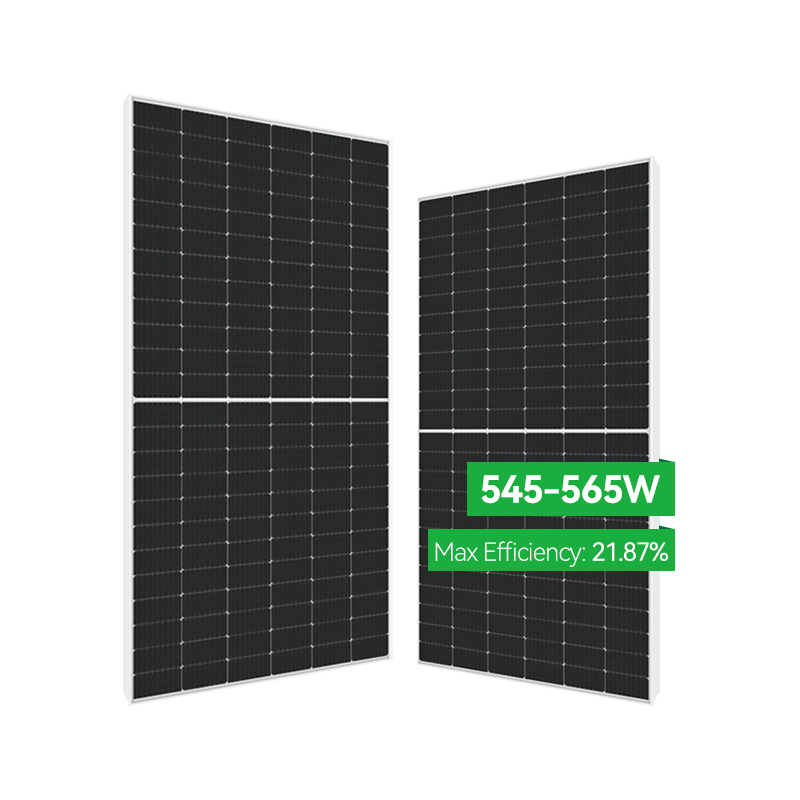

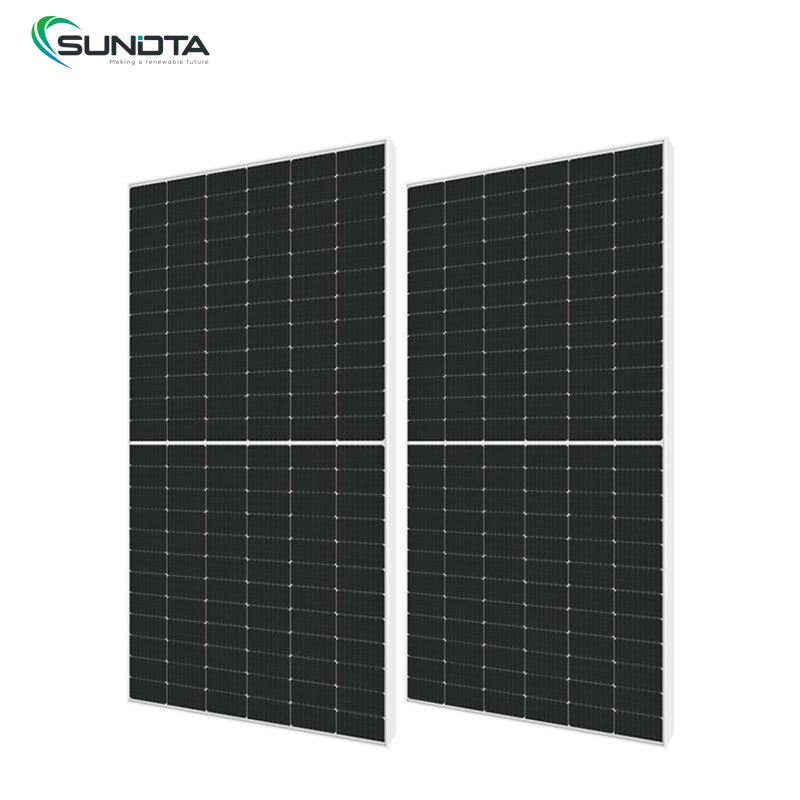

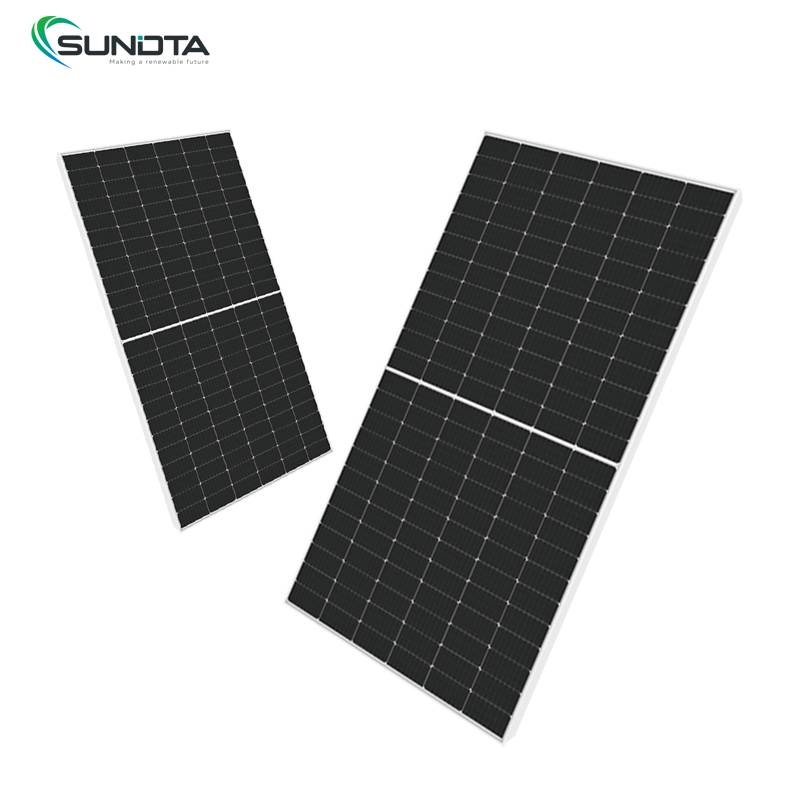

565W P type Solar Panels manufacturing
|
Cell Orientation |
144(6x24) |

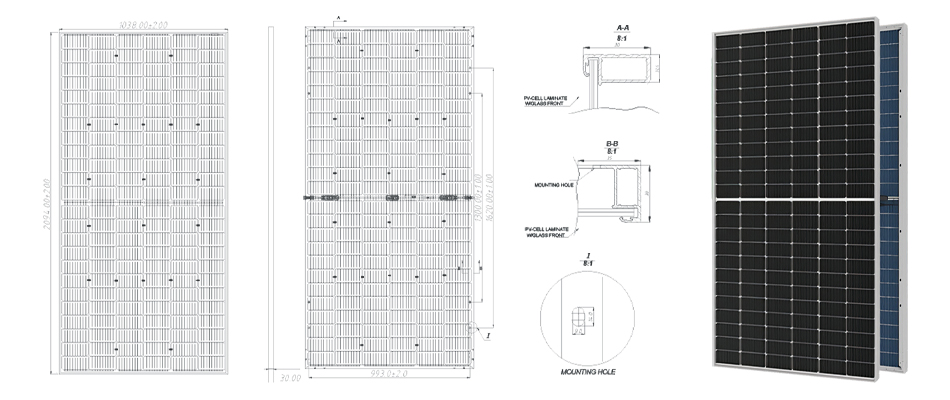

| Dimension | 2278x1134x30mm |
| Weight | 31.8kg |

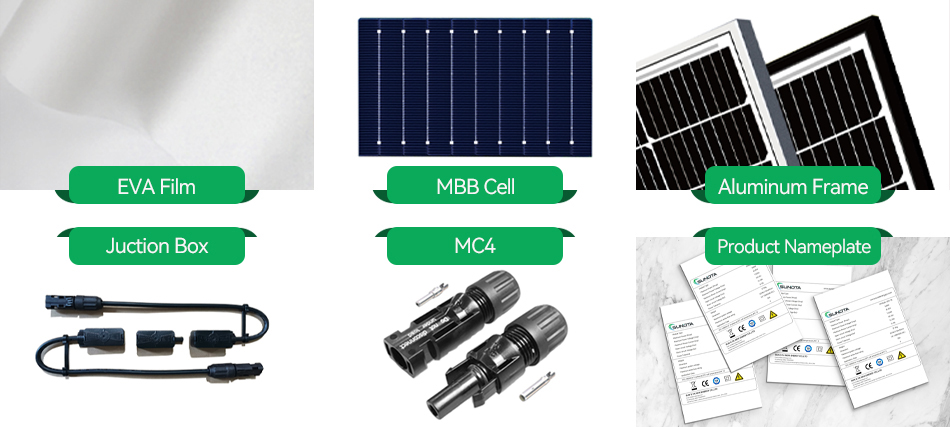

| Glass |
Front Glass:2.0mm AR Coating Tempered Glass Back Glass:2.0mm Glazed Semi-tempered Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable | 4mm², Portrait 300mm/Landscape |

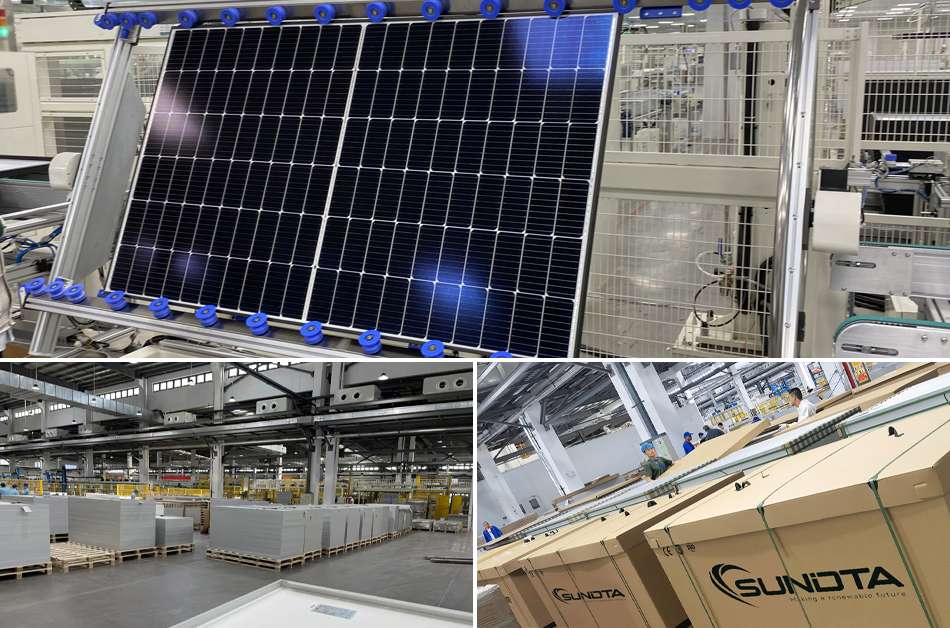

| Packaging |
36pcs/pallet,720pcs/40'HQ |
| Maximum Power(Pmax) | 545W | 550W | 555W | 560W | 565W |
| Maximum Power Voltage(Vmp) | 41.80V | 41.96V | 42.12V | 42.28V | 42.44V |
| Maximum Power Current(Imp) | 13.04A | 13.11A | 13.18A | 13.25A | 13.32A |
| Open-circuit Voltage(Voc) | 49.76V | 49.92V | 50.08V | 50.24V | 50.40V |
| Short-circuit Current(lsc) | 13.93A | 14.00A | 14.07A | 14.14A | 14.21A |
| Module Efficiency(%) | 21.10% | 21.30% | 21.50% | 21.70% | 21.87% |
Selection of packaging materials with excellent sealingMore advanced cell processing technology to reducedoping to ensure highly PlD resistance.
Sand blowing test, salt mist test and ammonia test passedto adapt with harsh environments.
Mechanical performance up to 5400 Pa positive load and2400 Pa.Negative load.
