Model:
STM455-72M-T6Rated Power:
455WDimension:
2094*1038*35mmWeight:
23.5kgNo. Of Cells:
72Cell Type:
166mm PercModule Color:
sliverEfficiency:
23%Certification:
CE/TUVWarranty:
25 Years

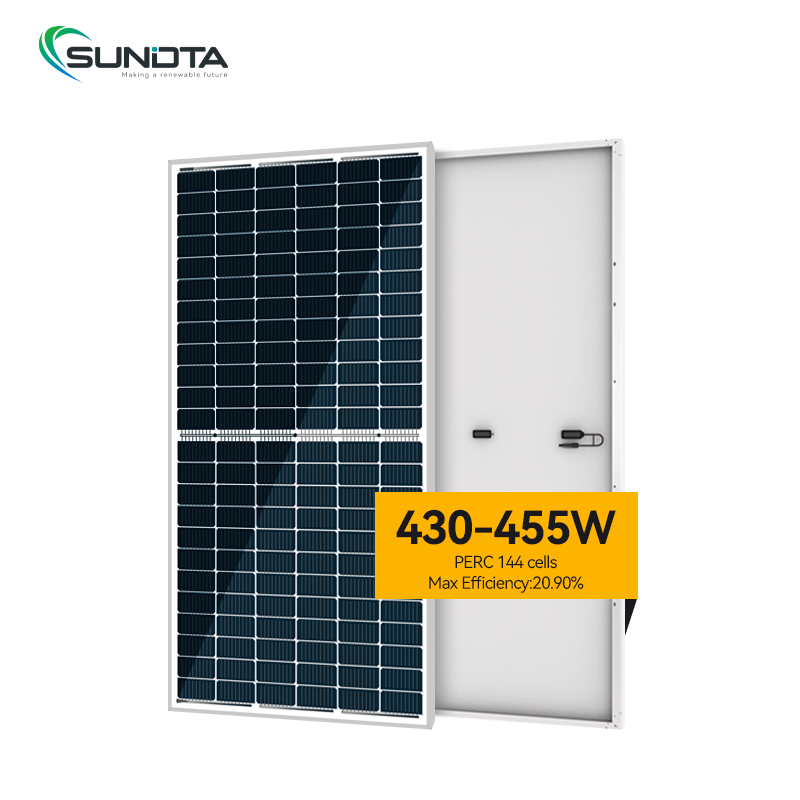

half-cut size 430-455w solar panel
15 Years Warranty for Materials and Processing
25 Years Warranty for Extra Linear Power Output
Innovative stack structure, low-temperature adhesive bonding, high-density layout
Excellent low-light power generation effect, ensuring continuous output in cloudy,shading conditions.
Whole process of manufacturing adheres to the green concept, fluorine-free and low-lead.
Minimized micro-cracks with innovative non-destructive cutting Technology.
Selection of packaging materials with excellent sealing More advanced cell processing technology to reduce doping to ensure highly PID resistance.
Sand blowing test, salt mist test and ammonia test passed to adapt with harsh environments.
Mechanical performance up to 5400 Pa positive load and 2400 Pa.Negative load.
| Cell Orientation | 144 (6x24) |
| Dimension | 2094x1038x35mm |
| Weight | 23.5kg |
| Glass | Single glass,3.2mm coated tempered glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable | 4mm2,300mm in length,length can be customized |
| Packaging | 30pcs/pallet,660pcs/40'HQ |
| Maximum Power(Pmax) | 430w | 435w | 440w | 445w | 450w | 455w |
| Maximum Power Voltage(Vmp) | 40.7V | 40.9V | 41.1V | 41.5V | 41.7V | 38.20V |
| Maximum Power Current(Imp) | 10.57A | 10.64A | 10.71A | 10.78A | 10.85A | 10.92A |
| Open-circuit Voltage(Voc) | 48.50V | 48.70V | 48.90V | 49.10V | 49.30V | 49.50V |
| Short-circuit Current(lsc) | 11.31A | 11.39A | 11.46A | 11.53A | 11.60A | 11.66A |
| Module Efficiency(%) | 22.60% | 22.80% | 23.00% | |||
