Model:
STD51.2V280AHBattery Energy Capacity:
51.2VRated Cell Capacity:
14.336KwhDimension:
874*440*235Cycle Times:
＞6000 TimesCertification:
CE/IEC/UL/UN38.3/MSDS
SUNDTA 51.2V 280Ah Lifepo4 Solar Battery
Maintenance-Free: The battery requires minimal maintenance, eliminating the need for frequent checks or adjustments. This feature simplifies the operation and reduces overall costs.
Compatibility: The 51.2V 280Ah LiFePO4 solar battery is compatible with most solar power systems, making it a versatile choice for residential, commercial, and industrial applications.
The 51.2V 280Ah LiFePO4 solar battery offers high capacity, excellent performance, and enhanced safety features, making it an ideal choice for reliable and efficient energy storage in solar installations.
| Basic Pameters | STMH-51.2 *N-280AH |
|
Nominal Voltage (V)
|
51.2*N |
| Nominal Capacity (KWH) | 14.336*N |
| Usable Capacity (KWH) | 14.336*N*90% |

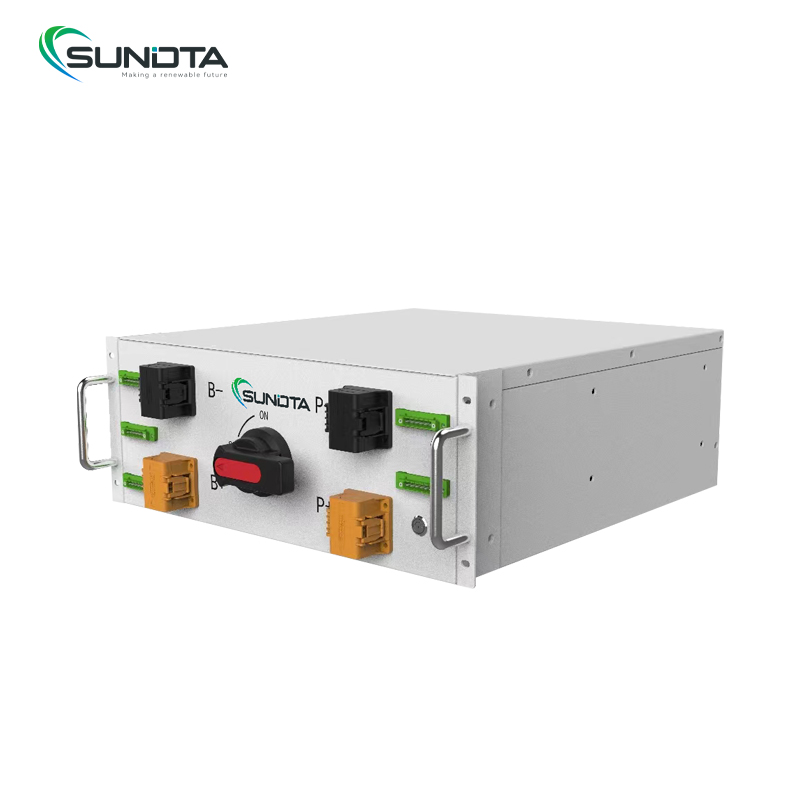

| Battery Controller Name | STMC-1500-300 |

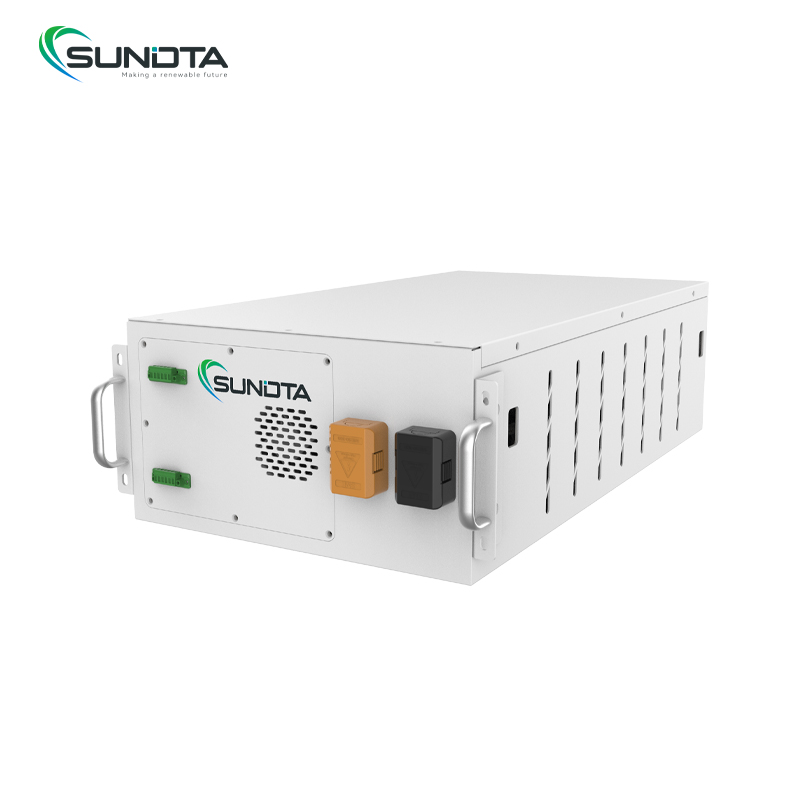

| Battery Module Name | STM48280H |
| Battery Module Quantity | N |
| Battery Module Capacity(KWH) | 14.336 |
| Battery Module Voltage(V dc) | 51.2 |
| Battery Module Capacity (Ah) | 280 |
|
Battery System Charge Voltage(V dc) |
56*N |
|
Battery System Charge Current(Normal) |
140 |
| Battery System Charge Current (Max) | 280 |
| Battery System Dischargelower-Voltage(Vdc) | 44.8*N |
| Battery System Discharge Current (Standard) | 140 |
| Battery System Discharge Current(Normal) | 280 |
| Efficiency | 96% |
| Depth of Discharge | RS485/CAN |
| Working Temperature | 0℃C~50℃ Charge 10℃ ~50℃ Disharge |
| Communicaiton | RS485/CAN |
| Certification | CE/IEC/UL/UN38.3/MSDS |
| Design Life | 10 years+ |
| Cycle Life | >6000 |
|
Other: 1）Battery Controller Dimensions (W*D*H) 2）Battery Module Dimensions(W*D*H) |
874*440*235
874*440*235 |
