Model:
POLO-L1Battery Energy Capacity:
14.336KwhRated Voltage:
51.2VRated Cell Capacity:
280AhApplication:
Low VoltageWeight:
113KgDimension:
817×412×267mmCycle Times:
6000 TimesCertification:
CE MSDS UN38.3

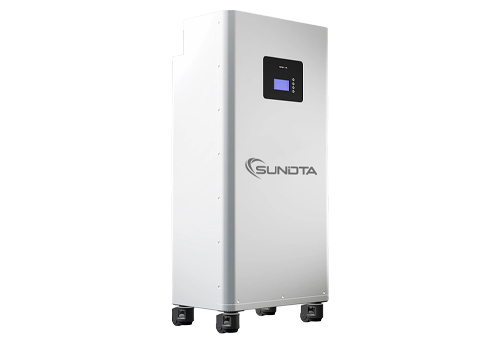

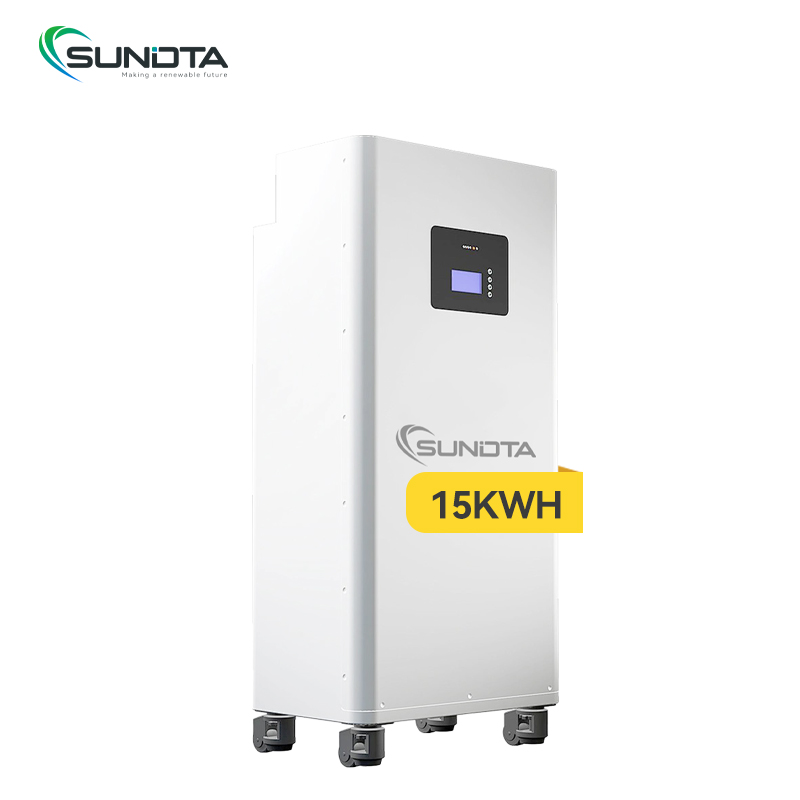

SUNDTA 15Kw lifepo4 battery for solar home energy storage
| Item | Specifications |
|
Rated energy(kWh)
|
14.336KWh |
| Configuration | 1P16S |
| Nominal Voltage(V) | 51.2V |
| Nominal Capacity(Ah) | 280Ah |
| Working Voltage(V) | 42V~58.4V |
| Standard charge/discharge Current(A) |
100A/200A @25±2℃ |
| Maximum charge/discharge current | 200A@25±2℃ |
| Working Temperature | 0～40℃(Charge) -20～40℃(Discharge) |
| Weight(Kg) | 113Kg±3kg |
| Dimension(mm) | (817)×(412)×(267)mm |
| Cycle life | 6000 cycles @25℃ 50A Charging/discharging Current 80% DOD |
| Communication mode | CAN&RS485 |
