Model:
STD51.2V100AH-StackBattery Energy Capacity:
5.12KwhRated Voltage:
51.2V*NRated Cell Capacity:
100AhApplication:
High VoltageWeight:
50*NCycle Times:
6000 TimesCertification:
CE MSDS UN38.3

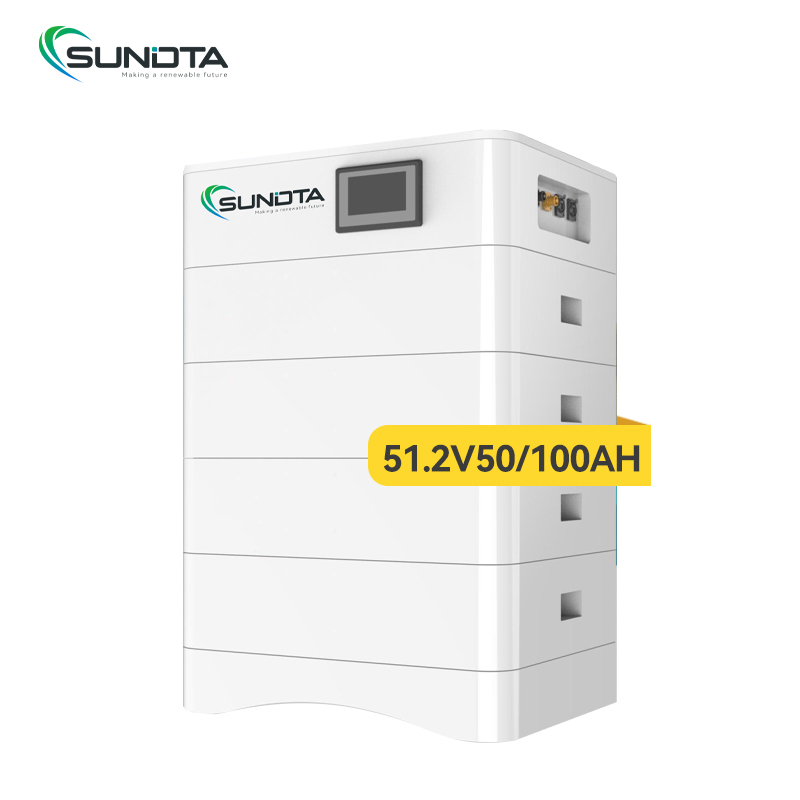

SUNDTA 51.2v 100ah lithium ion Stacked solar battery
Energy storage product's positive electrode materials are lithium iron phosphate,
battery cells are managed effectively by BMS with better performance, the system's features as below:
●The whole module is non-toxic, non-polluting and environmentally friendly;
●Cathode material is made from LiFePO4 with safety performance and long cycle life
●Battery management system with better performance, possesses protection function like over-discharge, over-charge, over-current, abnormal
temperature.
●Self-management on charging and discharging, Single core balancing function.
●Intelligent design configures integrated inspection module.
●Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power.
| Basic Parameters | Numerical |
| Nominal Voltage (V) | 51.2 |
| Nominal Capacity(WH) | 5120 |
| Usable Capacity(WH) | 4600 |
| Discharge Voltage (V) | 40 |
| Charge Voltage(V) | 58.4 |
| Recommend Charge/Discharge Current (A) | 50 |
| Max.Charge/Discharge Current(A) | 100 |
| Communicaiton | RS485/RS232/CAN 0C~50C Charge |
| Working Temperature | -10°C ~50C Disharge |
| Shelf Temperature | -20C~60C |
| Certification | CE/IEC/UL/UN38.3/MSDS |
| Design Life | 10 years+ |
| Cycle Life | >6000 |
