Sundta 100kw Growatt on Grid Inverter for Industrial

Growatt 100kw on grid solar inverter with 10 Years Warranty. All in one hybrid inverterG All in one hybrid inverter

Model:
Growatt MAX 100KTL3 LV
Output Voltage:
400V/380V(340-440V)
Max Output power:
111000VA
PV Input Voltage:
1100V
Weight:
84kg
Dimension:
970x640x345mm
Display:
LED/WIFI+APP
Certification:
CE,IEC62116,IEC61727,CQC,VDE0126,VFR2019,EN50549-1,C10/C11,UNE206007,G99,CEI0-21/0-16,n4105,UNE206006,MEA,PEA,KSC8565
Warranty:
10Years

Inquiry now

Product Details

solar inverter

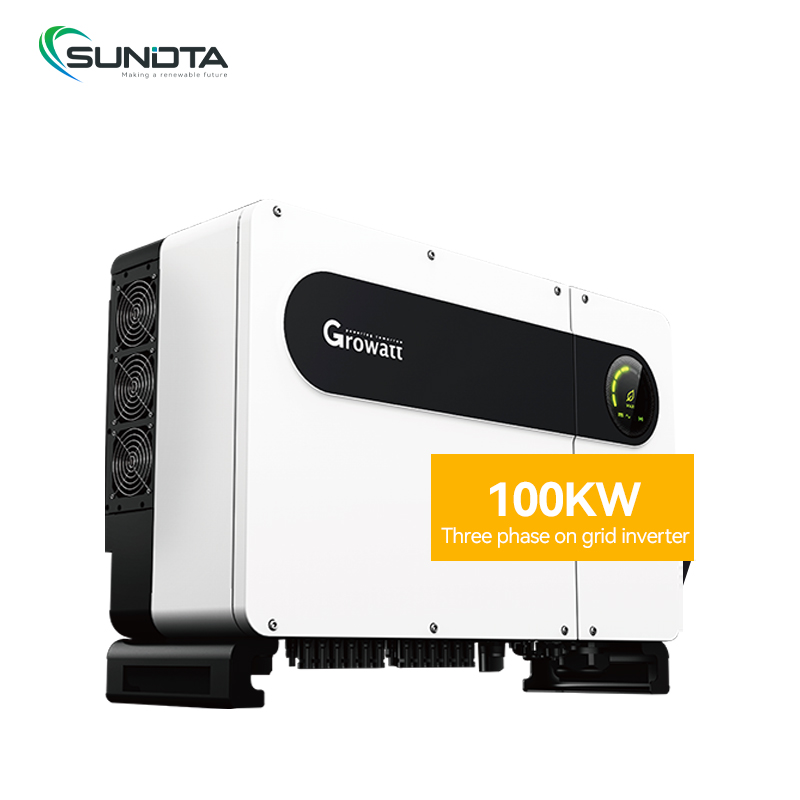

Sundta 100kw Growatt on Grid Inverter for industrial

Model Type	MAX 100KTL3 -X LV
Input Data(DC)
Max.DC voltage	1100V
Start voltage	195V
Nominal voltage	600V
MPP voltage range	180V-1000V
No.of MPP trackers	10
No.of PV string per MPP tracker	2
Max.input current per MPP tracker	32A
Max.short-circuit current per MPP tracker	40A
Output Data(AC)
AC nominal power	100000W
Max.AC apparent power	111000VA
Nominal AC voltage range	400V/380V(340-440VAC)
AC grid frequency range	50/60Hz(45-55Hz/55-65Hz)
Max.output current	158.8A@400V;167.1A@380V
Adjustable power factor	0.8 leading…0.8 lagging
THDi	﹤3%
AC grid connection type	3W+N+PE
Efficiency
Max.efficiency	98.8%
European efficiency	98.4%
MPPT efficiency	99.9%
Protection Devices
DC reverse polarity protection	yes
DC switch	yes
AC/DC surge protection	Type II/Type II
Insulation resistance monitoring	yes
AC short-circuit protection	yes
Ground fault monitoring	yes
Grid monitoring	yes
Anti-islanding protection	yes
Residual-current monitoring unit	yes
AFCI protection	Optional
Anti-PID function	Optional
General Data
Dimensions(W/H/D)	970x640x345mm
Weight	84kg
Operating temperature range	-30℃-+60℃
Self-Consumption (night)	﹤1W
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP 66
Relative humidity	0-100%
Altitude	4000m
DC connection	H4/MC4 (Max.6mm²)
AC connection	OT Terminal(Max.240mm²)
Display	LED/WIFI+APP
Interfaces:RS485/USB/WIFI/GPRS/RF	Yes/Yes/Optional/Optional/Optional/Optional
Warranty:5 years/10 years	Yes/Optional
CE,IEC62116,IEC61727,CQC,VDE0126,VFR2019,EN50549-1,C10/C11,UNE206007,G99,CEI0-21/0-16,n4105,UNE206006,MEA,PEA,KSC8565

solar inverter

Growatt MAX 100 KTL3 LV is a three phase solar inverter designed for residential and commercial use. As an inverter, its primary function is to convert the direct current (DC) electricity produced by solar panels into alternating current (AC) electricity that can be used to power homes and businesses. One of the main features of the Growatt MAX is its high efficiency, which allows it to maximize the power output of solar panels, even under challenging environmental conditions such as shading, dust or extreme temperature. The inverter is equipped with MPPT (maximum power point tracking) technology, which continuously monitors and adjusts the electrical load to optimize the amount of energy that can be produced by the solar panels.
