Model:
SUN600G3-US-220/EU-230Max. PV Input Power(W):
210-420(2 Pieces)Max. PV Input Voltage(V):
60MPPT Efficiency:
>99%Operating Temperature Range (℃):
-40 to +65℃, >45℃ DeratingWarranty [year]:
10 yearsGrid Regulation:
IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,VDE-AR-N 4105

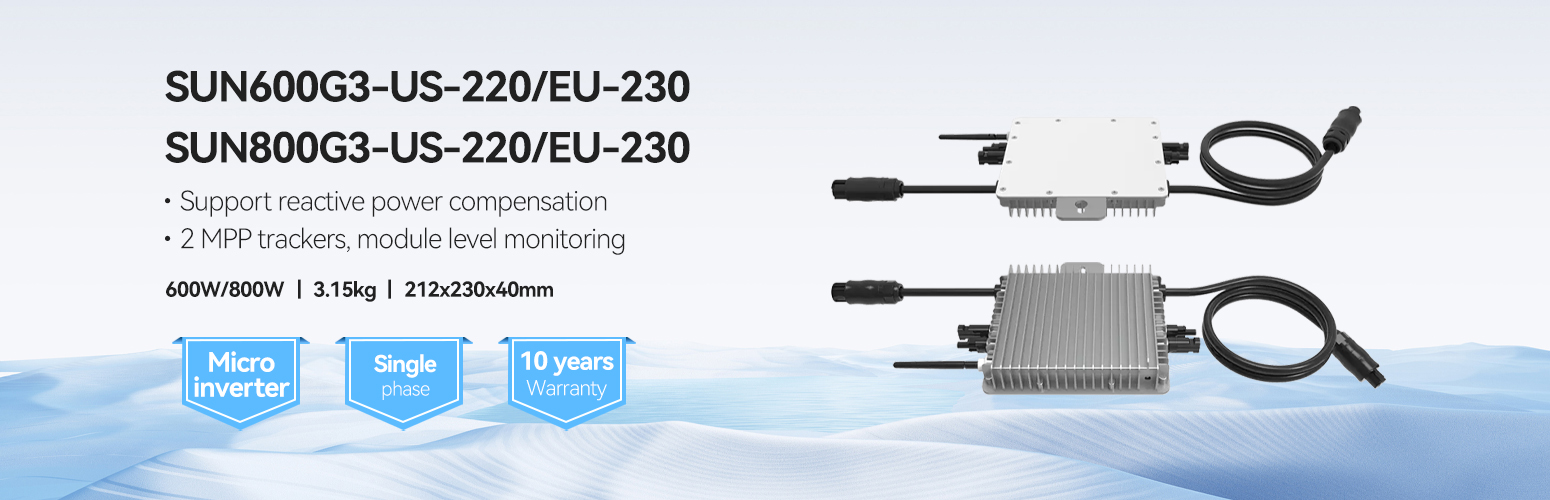

High Performance 600w Microinverter with 2 MPP Trackers
A 600W micro solar inverter is a device used to convert the direct current (DC) electricity generated by a solar panel into alternating current (AC) electricity that can be used to power household appliances and other electrical devices.
| Model | SUN600G3-US-220/EU-230 |
| PV String Input Data | |
| Max. PV Input Power(W) | 210-420(2 Pieces) |
| Max. PV Input Voltage(V) | 60 |
| Start-up Voltage(V) | 20 |
| MPPT voltage range(V) | 25-55 |
| Rated PV Input voltage(V) | 42.5 |
| Max. Input Short-Circuit Current (A) | 19.5+19.5 |
| Max. Operating PV Input Current(A) | 13+13 |
| No. of MPP Trackers/No. of String per MPP Tracker | 2/1 |
| AC Input/Output Side | |
| Rated AC Output Active Power(W) | 600 |
| Max.AC Output Apparent Power(VA) | 600 |
| Rated AC output current (A) | 2.8/2.7 |
| Max.AC Output Current(A) | 2.8/2.7 |
| Rated output voltage/range (V) | 220/230 0.85Un-1.1Un |
| Grid Connection Form | L/N/PE |
| Rated Output Grid Frequency/range(Hz) | 50/45-55, 60/55-65 |
| Max. unit per branch | 8 |
| Power Factor Adjustment Range | 0.8 leading to 0.8lagging |
| Total Current Harmonic Distortion THDi | <3% |
| Efficiency | 96.5% |
| Max. Efficiency | 96.5% |
| Euro Efficiency | 96.0% |
| MPPT Efficiency | >99% |
| Equipment Protection | |
| DC Polarity Reverse Connection Protection | YES |
| AC Output Overcurrent Protection | YES |
| AC Output Overvoltage Protection | YES |
| AC Output Short Circuit Protection | YES |
| Thermal Protection | YES |
| DC Terminal Insulation Impedance Monitoring | YES |
| Power Network Monitoring | YES |
| Island protection monitoring | YES |
| Earth Fault Detection | YES |
| Overvoltage Load Drop Protection | YES |
| Interface | YES |
| Communication Interface | WiFi |
| General Data | |
| Operating Temperature Range (°C) | -40 to +65℃, >45℃ Derating |
| Permissible Ambient Humidity | 0~100% |
| Permissible Altitude (m) | 2000m |
| Noise (dB) | ≤ 25 dB(A) |
| Ingress Protection(IP) Rating | IP 67 |
| Inverter Topology | IP 67 |
| Inverter Topology | Isolated |
| Over Voltage Category | OVC II(DC),OVC III(AC) |

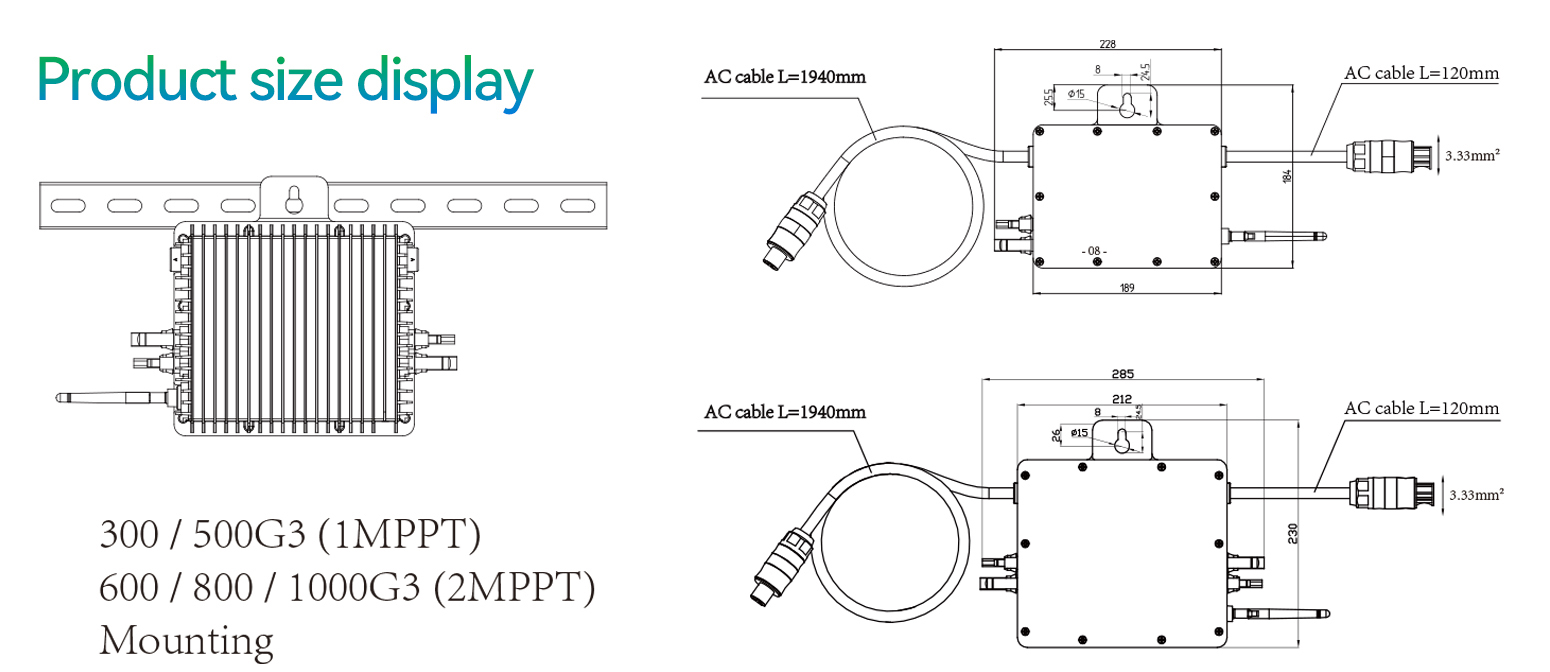

| Cabinet Size（W*H*D）[mm] | 280.5*190*40（Excluding connectors and brackets） |
| Weight [kg] | 3 |
| Warranty [year] | 10 Years |
| Type Of Cooling | natural cooling |
| Grid Regulation | IEC 61727,IEC 62116,CEI 0-21,EN 50549，NRS 097,RD 140,UNE 217002,OVE-Richtlinie R25,G98,VDE-AR-N 4105 |
| Safety EMC/Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 |
