Model:
STM430-450-54M-T8NDimension:
1722x1134x30mmWeight:
22.0kgCell Type:
N-TYPEModule Color:
All BlackEfficiency:

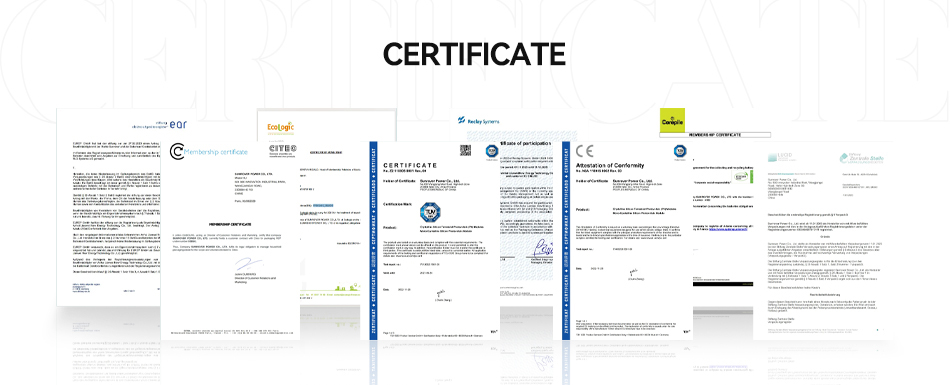

23.04%Certification:
CE/TUVWarranty:
15 Years

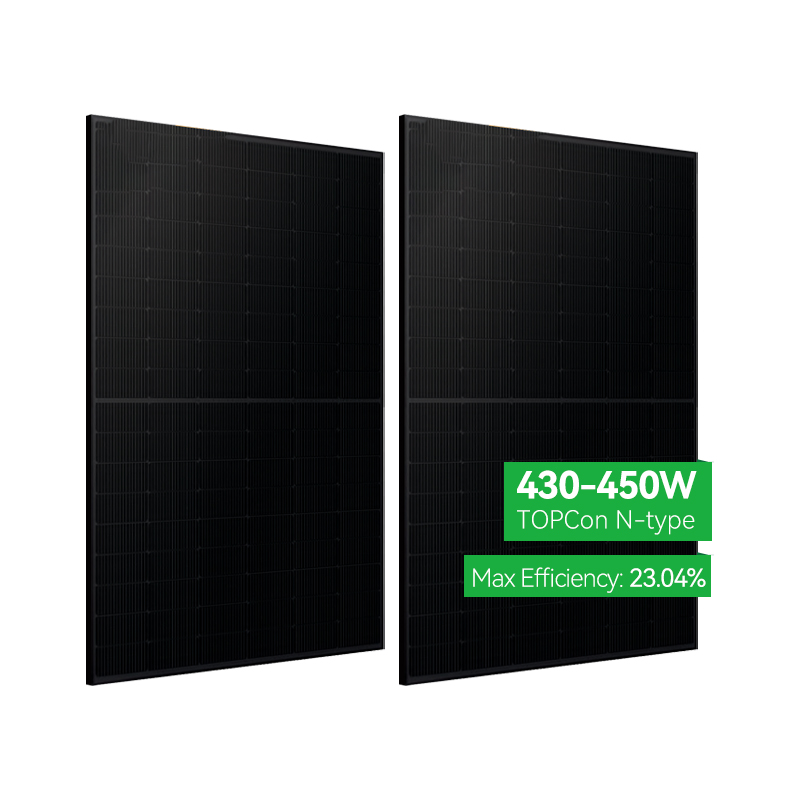

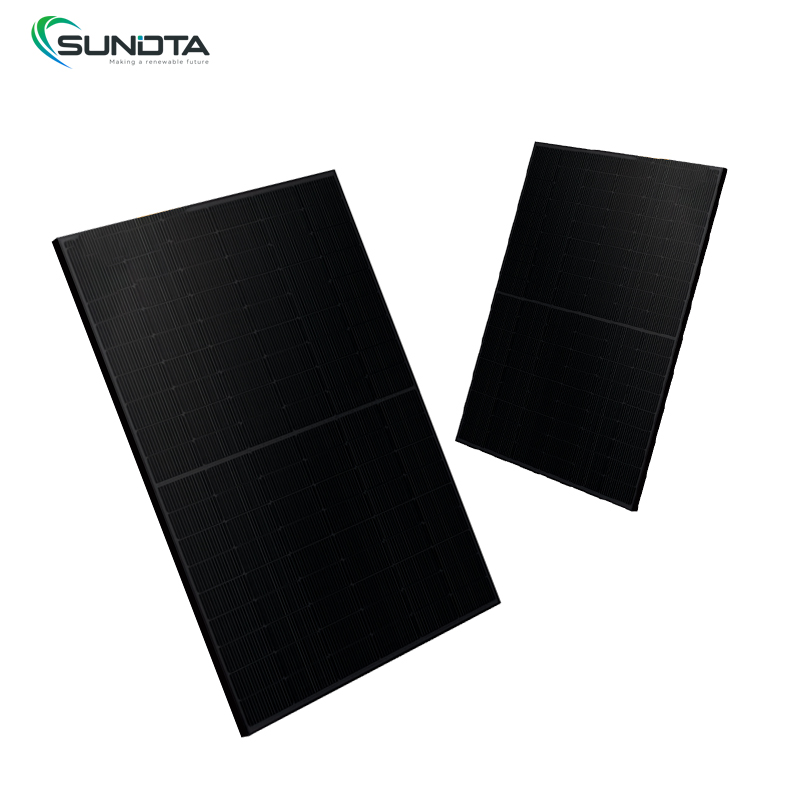

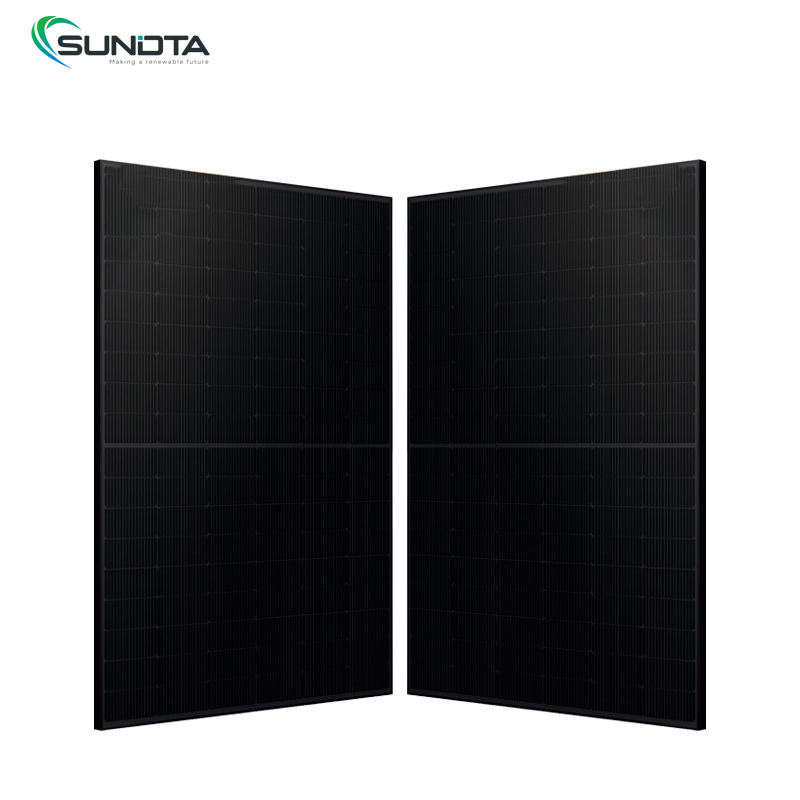

450W All Black Double Glass N-TYPE Solar Panel
| Cell Orientation | 108 (6x18) |

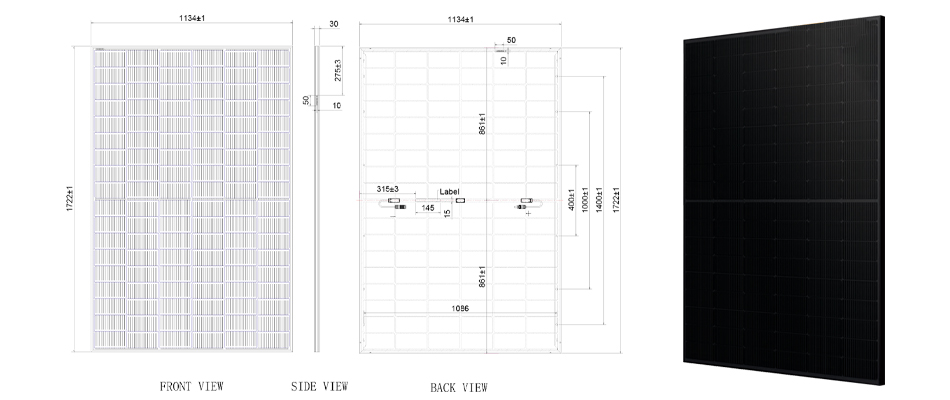

| Dimension | 1722x1134x30mm |
| Weight | 22.0kg |

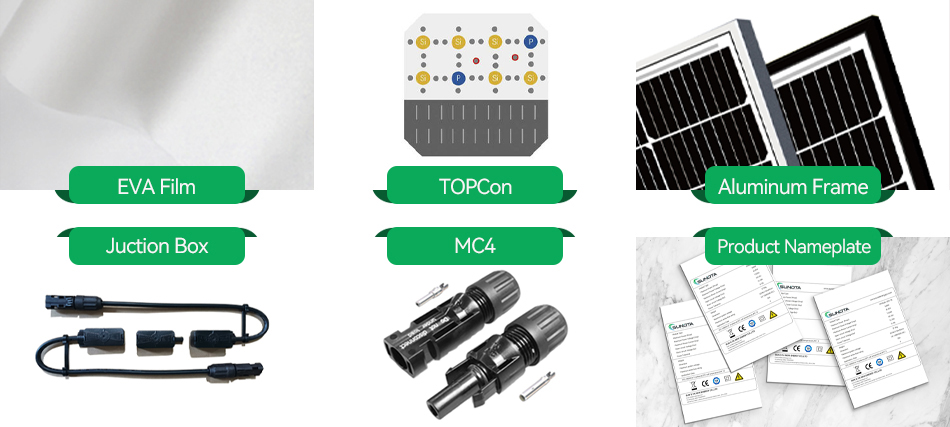

| Glass |
Front Glass:2.0mm high transmittance,AR coated tempered Glass Rear Glass:2.0mm high transmittance,coated temperature Glsaa |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68,three diodes |
| Output Cable | +400mm,-200mm or±1200mm,length can be customized |
| Packaging | 36pcs/pallet, 936pcs/40'HQ |
| Maximum Power(Pmax) | 430W | 435W | 440W | 445W | 450W |
| Maximum Power Voltage(Vmp) | 31.87V | 32.06V | 32.25V | 32.44V | 32.63V |
| Maximum Power Current(Imp) | 13.50A | 13.58A | 13.66A | 13.74A | 13.82A |
| Open-circuit Voltage(Voc) | 38.48V | 38.67V | 38.86V | 39.05V | 39.24V |
| Short-circuit Current(lsc) | 14.24A | 14.32A | 14.40A | 14.48A | 14.56A |
| Module Efficiency(%) | 22.02% | 22.28% | 22.53% | 22.79% | 23.04% |
N type topcon cells make extremely low power losses andprevent phenomena LID&LETID.
Excellent low-light power generation effect, ensuringcontinuous output in cloudy,shading conditions.
Whole process of manufacturing adheres to the greenconcept, fluorine-free and low-lead.
Minimized micro-cracks with innovative non-destructivecutting Technology.
