Model:

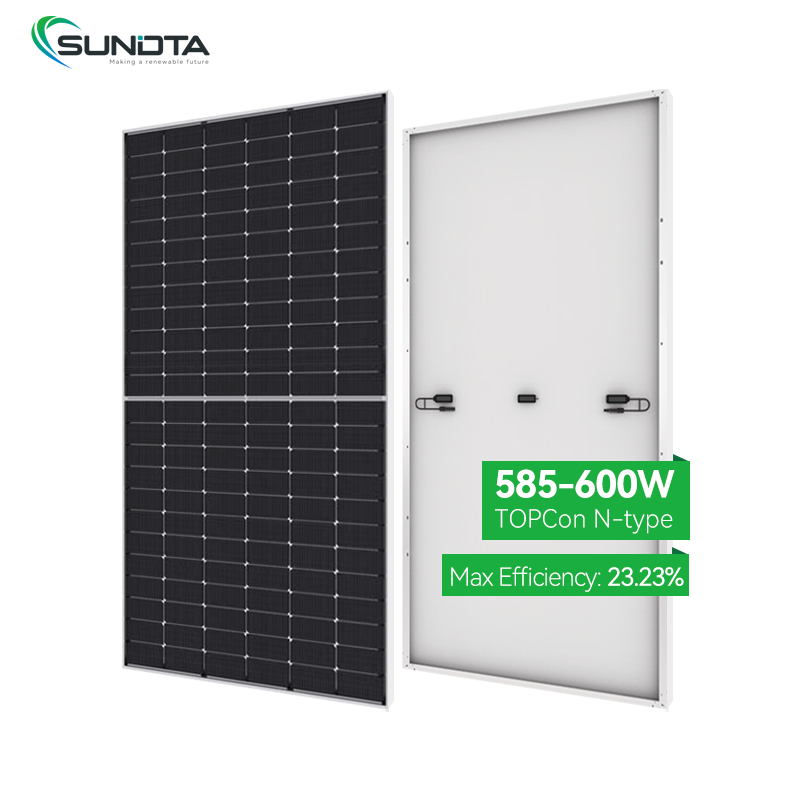

LUX7 STM585-600-72M-T8NRated Power:
Dimension:
2278x1134x30mmWeight:
28.0kgNo. Of Cells:
Cell Type:
N-TYPEModule Color:
All BlackEfficiency:
23.23%Certification:
CE/TUVWarranty:
15 Years
| Cell Orientation | 144(6x24) |
| Dimension | 2278x1134x30mm |
| Weight | 28kg |
| Glass | 3.2mm,Anti-Relfection Coating,High Transmission,Low lron,Tempered Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | lP68,three diodes |
| Output Cable | TUV 1x4.0mm²,(+):400mm,(-):200mm or Customized Length |
| Packaging | 31pcs/pallet, 620pcs/40'HQ |
| Maximum Power(Pmax) | 585W | 590W | 595W | 600W |
| Maximum Power Voltage(Vmp) | 42.52V | 42.67V | 42.82V | 42.97V |
| Maximum Power Current(lmp) | 13.76A | 13.83A | 13.90A | 13.97A |
| Open-circuit Voltage(Voc) | 51.16V | 51.30V | 51.44V | 51.58V |
| Short-circuit Current(lsc) | 14.55A | 14.63A | 14.71A | 14.79A |
| Module Efficiency(%) | 22.65% | 22.84% | 23.03% | 23.23% |
Multiple Brands：
Multipe Modules are available in stock to ensure dispatch time less than 7days.
Market sensitivity,better market suggestions
Since the market pricehas been changing, the module of each module factory has been changing,we can choose the best brands.the best models, and the best price for you at the same time!
0ne-stopProcurement
Full-range supply of solar panels,inverters,batteries,mounting system, and other solar accessories.
More ProfessionalService Team
More than 10 years of photovoltaic industry engineer, more than 5 years of solar product export experience sales manager.7*24 hours to provide you with better solar solutions.
