Model:
STD51.2V 200AH-RBattery Energy Capacity:
5.12/10.24KwhRated Voltage:
51.2VRated Cell Capacity:
100Ah/200AhApplication:
High VoltageWeight:
50Kg/100kgCycle Times:
6000 TimesCertification:
CE MSDS UN38.3

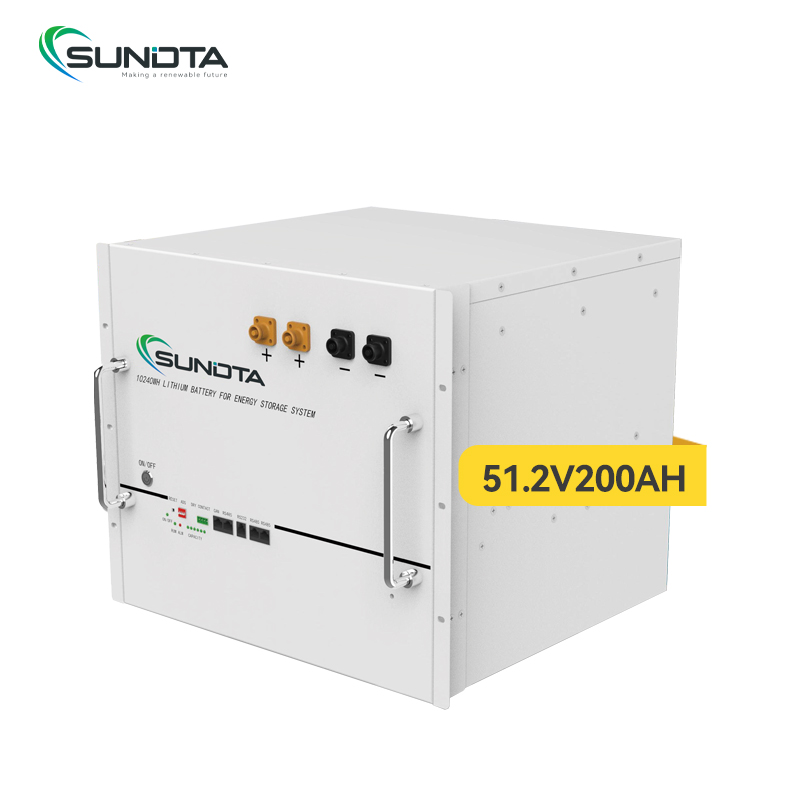

High voltage 51.2v 200ah solar litium batteries
Energy storage product's positive electrode materials are lithium iron phosphate,
battery cells are managed effectively by BMS with better performance, the system's features as below:
●Intelligent design configures integrated inspection module.
●Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power.
●Flexible configurations allow parallel of multi battery for longer standby time.
●Self-ventilation with lower system noise.
●Less battery self-discharge, then recharging period can be up to 10 months during the storage.
●No memory effect so that battery can be charged and discharged shallowly.
| Basic Parameters | Numerical |
| Nominal Voltage (V) | 51.2 |
| Nominal Capacity(WH) | 10240 |
| Usable Capacity(WH) | 9216 |
| Discharge Voltage (V) | 40 |
| Charge Voltage(V) | 58.4 |
| Recommend Charge/Discharge Current (A) | 50 |
| Max.Charge/Discharge Current(A) | 100 |
| Communicaiton | RS485/RS232/CAN |
| Working Temperature | 0C~50C Charge -10°C ~50C Disharge |
| Shelf Temperature | -20C~60C |
| Certification | CE/IEC/UL/UN38.3/MSDS |
| Design Life | 10 years+ |
| Cycle Life | >6000 |
