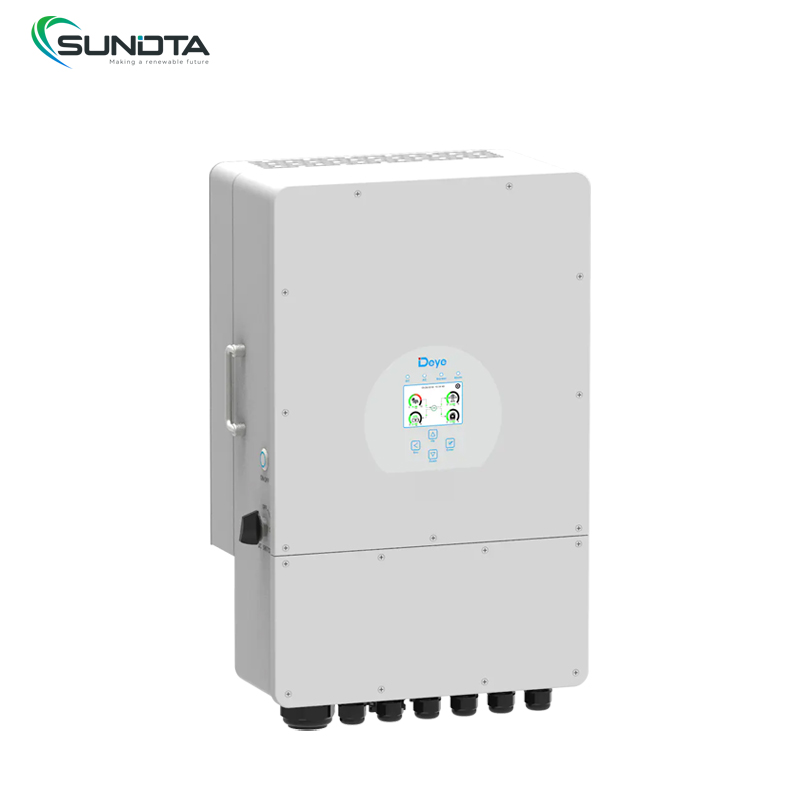

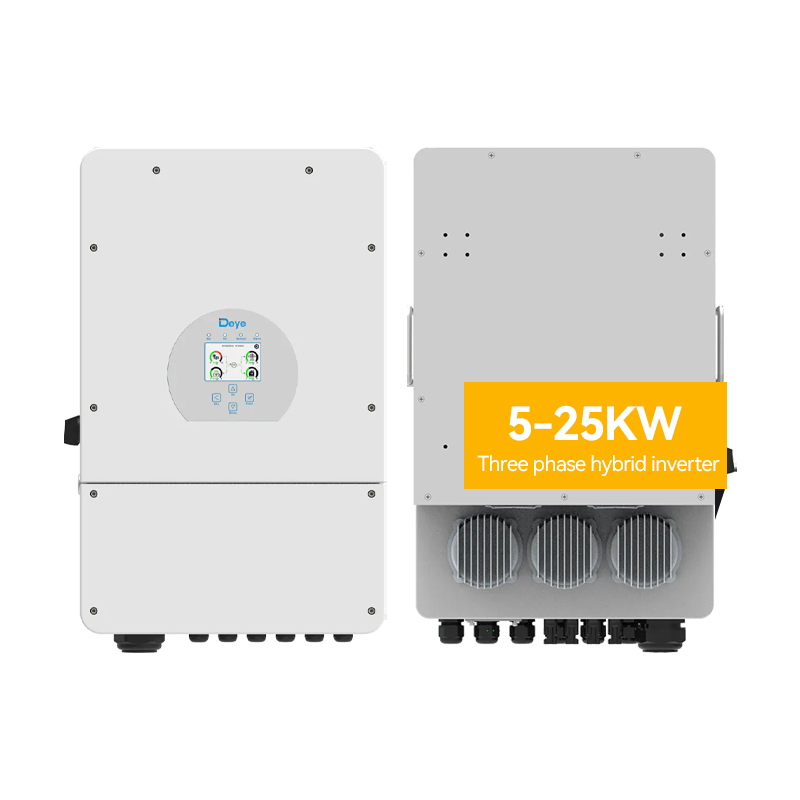

Deye HV Battery Supported Three Phase Hybrid Solar Inverter

Deye SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 EU Standard 10KW 12KW Three Phase Solar Inverter

Deye HV Battery Supported Three Phase Hybrid Solar Inverter

SUN-5-25K-SG01HP3-EU-AM2

Model:
SUN-5-25K-SG01HP3-EU-AM2
Max Output power:
27500
PV Input Voltage:
1000
Battery Voltage:
160-700
Weight:
30.5
Dimension:
408×638×237
Certification:
VDE/CE
Warranty:
5 Years (10 Years Optional)

Inquiry now

Product Details

deye

Deye SUN-5/6/8/10/12/15/20/25K-SG01HP3-EU-AM2 HV Battery Supported Three Phase Deye Hybrid Solar Inverter 12KW 15KW 20KW 25KW AC

Model	SUN-5K-SG01 HP3-EU-AM2	SUN-6K-SG01 HP3-EU-AM2	SUN-8K-SG01 HP3-EU-AM2	SUN-10K-SG01 HP3-EU-AM2	SUN-12K-SG01 HP3-EU-AM2	SUN-15K-SG01 HP3-EU-AM2	SUN-20K-SG01 HP3-EU-AM2	SUN-25K-SG01 HP3-EU-AM2
Battery Input Data
Battery Type	Lithium-ion
Battery Voltage Range (V)	160~700
Max. Charging Current (A)	37							50
Max. Discharging Current (A)	37							50
Number of Battery Input	1
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	6500	7800	10400	13000	15600	19500	26000	32500
Max. DC Input Voltage (V)	1000
Start-up Voltage (V)	180
MPPT Range (V)	150-850
Full Load DC Voltage Range (V)	195-850	195-850	260-850	325-850	340-850	420-850	500-850	625-850
Rated DC Input Voltage (V)	600
PV Input Current (A)	20+20				26+20		26+26
Max. PV I (A)	30+30				39+30		39+39
No.of MPP Trackers	2
No.of Strings per MPP Tracker	1+1				2+1		2+2
AC Output Data
Rated AC Output and UPS Power (W)	5000	6000	8000	10000	12000	15000	20000	25000
Max. AC Output Power (W)	5500	6500	8800	11000	13200	16500	22000	27500
AC Output Rated Current (A)	7.6/7.3	9.1/8.7	12.2/11.6	15.2/14.5	18.2/17.4	22.8/21.8	30.4/29	37.9/36.3
Max. AC Output Rated Current (A)	8.4/8	10/9.6	13.4/12.8	16.7/16	20/19.2	25/24	33.4/31.9	41.7/39.9
Max. Three-phase Unbalanced Output Current(A)	13	13	18	22	25	30	35	40
Max. Continuous AC Passthrough (A)	40				80
Peak Power (off grid)	1.5 time of rated power, 10 S
Generator Input/Smart Load /AC Couple Current (A)	7.6/40/7.6	9.1/40/9.1	12.2/40/12.2	15.2/40/15.2	18.2/80/18.2	22.8/80/22.8	30.4/80/30.4	37.9/80/37.9
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz; 3L/N/PE 220/380, 230/400Vac
Grid Type	Three Phase
Total Harmonic Distortion (THD)	<3% (of nominal power)
DC Current Injection	<0.5% In
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Protection
Integrated	Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection
Over Voltage Category	DC Type II/AC Type III
Certifications and Standards
Grid Regulation	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI 0 21, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC / Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
General Data
Operating Temperature Range (℃)	-40-60℃, >45℃ Derating
Cooling	Smart Cooling
Noise (dB)	≤55 dB
Communication with BMS	RS485; CAN
Weight (kg)	30.5

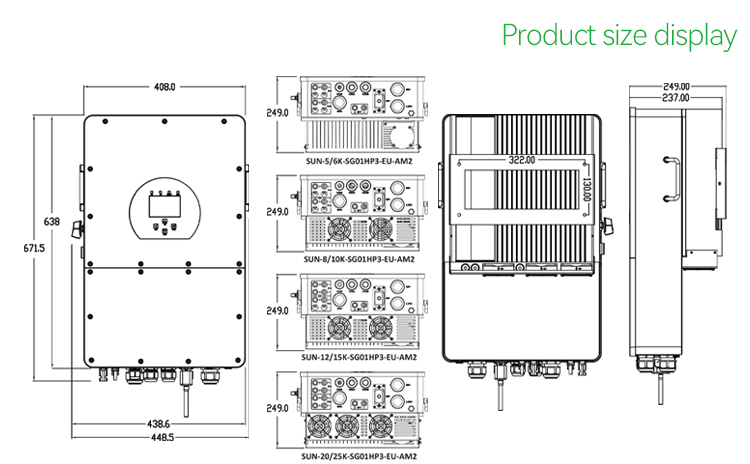

Cabinet Size (WxHxD mm)	408×638×237 (Excluding Connectors and Brackets)
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 Years (10 Years Optional)
