10KW Three Phase Hybrid Inverter For Solar

10KW Three Phase Hybrid Inverter For Solar

Colorful touch LCD, IP65 protection degree DC couple and AC couple to retrofit existingsolar system Max. 16pcs parallel for on-grid and off-gridoperation; Support multiple batteries parallel Max. charging/discharging current of 190A 6 time periods for battery charging/discharging Support storing energy from diesel generator All in one hybrid inverter All in one hybrid inverter

Model:
SUN-10K-SG04LP3-EU
Battery Type:
Lead-acid or Li-Ion
Battery Voltage Range(V):
40-60V
Max.Charging Current(A):
210A
Max.DC Input Power(W):
13000W
No.of Strings per MPP Tracker:
2+1
Max.AC Output Power(W):
11000W
Weight(kg):
33.6kg
Size(mm):
422Wx699.3Hx279D
Warranty:
5 years

Inquiry now

Product Details

deye 8kw solar inverter

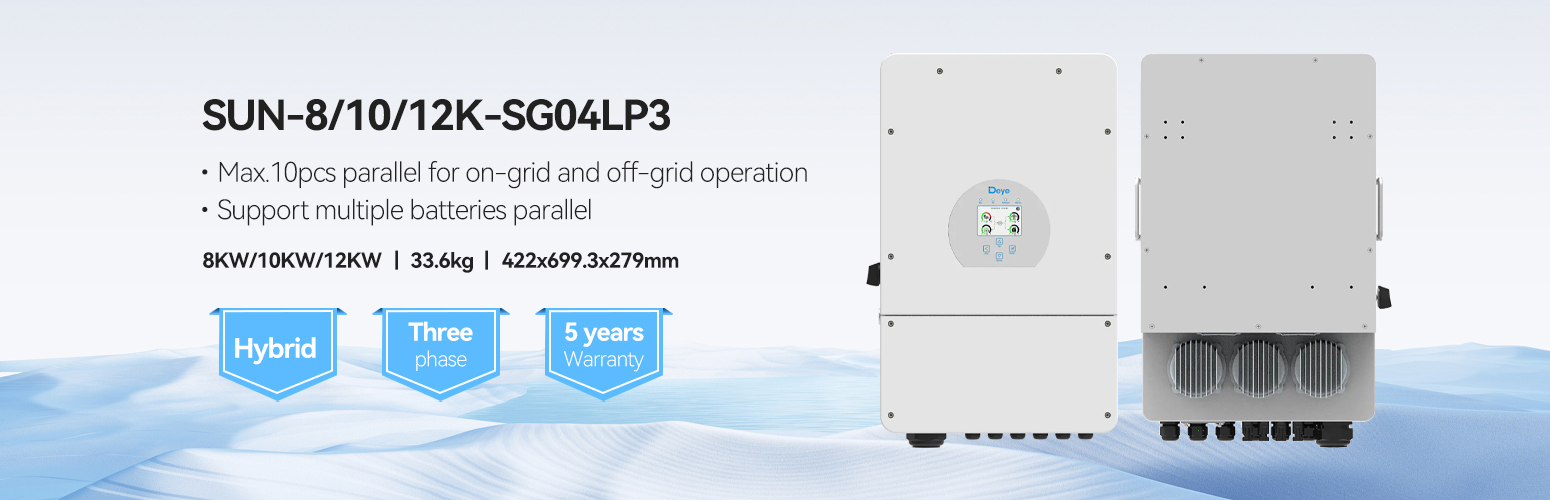

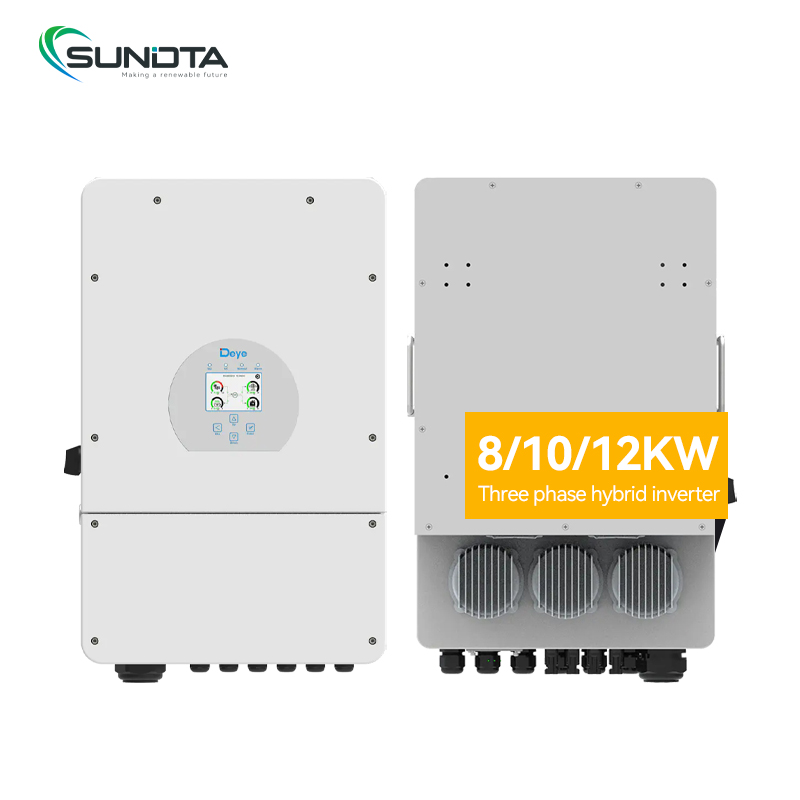

10KW Three Phase Hybrid Inverter For Solar

The Deye 10KW 3-phase solar inverter is a device designed to convert the DC (direct current) electricity generated by solar panels into AC (alternating current) electricity that can be used to power your home or business. It is capable of handling a maximum power output of 10,000 watts or 10 kilowatts.

Model	SUN-8K-SG04LP3-EU
Battery Input Data
Battery Type	Lead-acid or Li-Ion
Battery Voltage Range(V)	40-60V
Max.Charging Current(A)	210A
Max.Discharging Current(A)	210A
External Temperature Sensor	Yes
Charging Curve	3 Stages/Equalization
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input Data
Max.DC Input Power(W)	13000W
Rated PV Input Voltage(V)	550V(160-800V)
Start-up Voltage(V)	160V
MPPT Voltage Range(V)	200V-650V
Full Load DC Voltage Range(V)	350V-650V
PV Input Current(A)	26+13
Max.PV Isc(A)	34+17
No.of MPPT Trackers	2
No.of Strings per MPP Tracker	2+1
AC Output Data
Rated AC Output and UPS Power(W)	10000W
Max.AC Output Power(W)	11000W
AC Output Rated Current(A)	15.2/14.5A
Max.AC Current(A)	22.7/21.7A
Max.Continuous AC Passthrough(A)	45A
Peak Power(off grid)	2 time of rated power,10S
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage	50/60Hz;3L/N/PE,220/380,230/400Vac
Grid Type	Three Phase
DC injection current(mA)	THD﹤3%（Linear load﹤1.5%)
Efficiency
Max.Efficiency	97.6%
Euro Efficiency	97%
MPPT Efficiency	99.9%
Protection
Integrated	PV Input Lighting Protection,Anti-islanding Protection PV String Input Revers Polarity Protection,Insulation Resistor Detection Residual Current Monitoring Unit,Output Over Current Protection Output Shorted Protection,Surge Protection
Output Over Voltage Protection	DC Type II/AC Type III
Certifications and Standards
Grid Regulation	CEI 0-21,VDE-AR-N 4105,NRS 097,IEC 62116,IEC 61727,G99,G98,VDE 0126-1-1,RD 1699,C10-11
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4,IEC/EN 62109-1,IEC/EN 62109-2
General Data
Operating Temperature Range(℃)	-40℃-60℃，﹥45℃ derating
Cooling	Smart cooling
Noise(dB)	﹤45 dB
Communication with BMS	RS485;CAN
Weight(kg)	33.6kg
Size(mm)	422Wx699.3Hx279D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

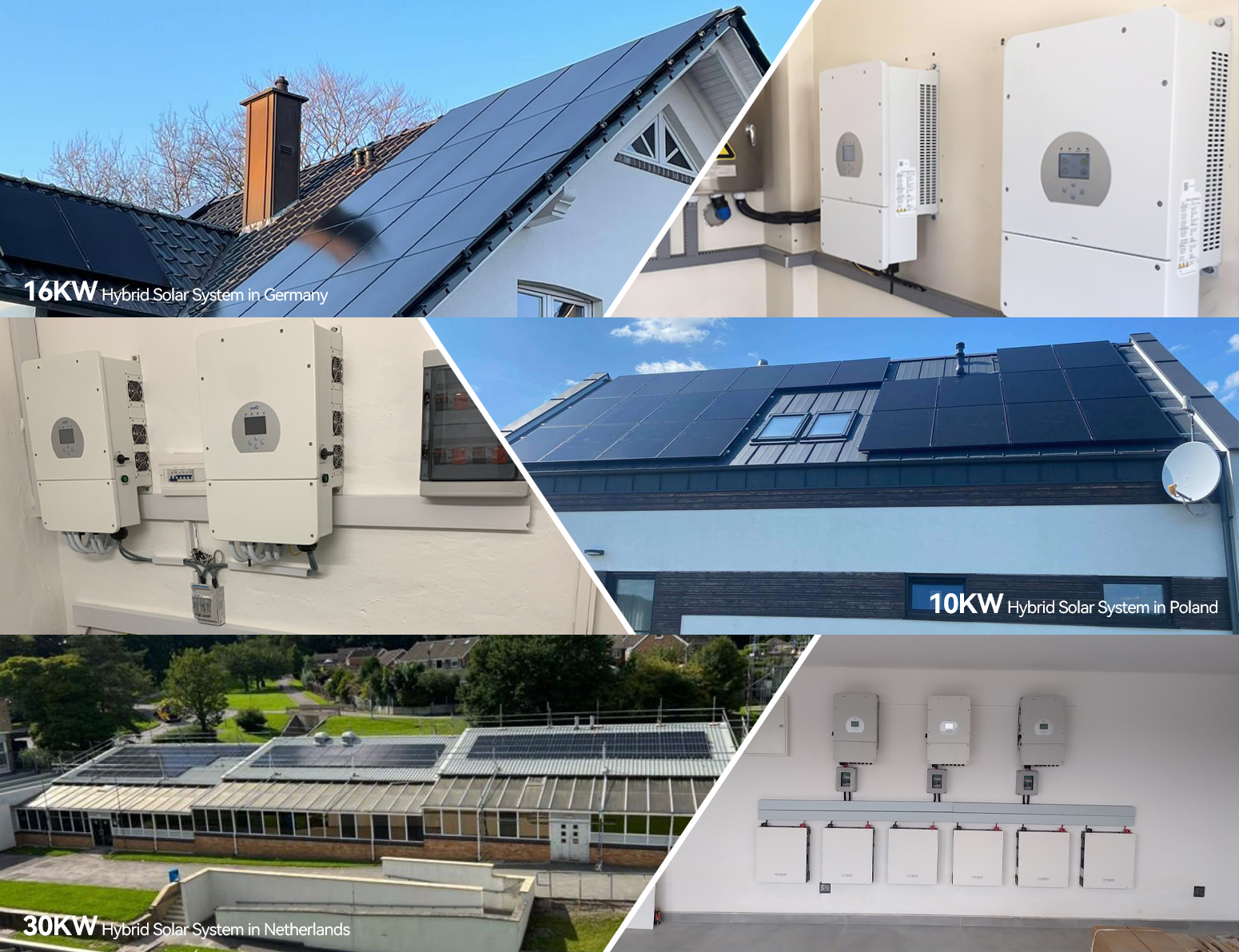

SUNDTA is a global solar module manufacturing company and provides integration services for residential, commercial and industrial energy system solutions for customers such as off grid,grid tie and hybrid grid customized proposal.

SUNDTA is an innovative company dedicated to the research,development and production of green energy. Founded in 2016 SUNDTA is committed to promoting the development and utilization of renewable energy in order to

reduce dependence ontraditional fossil fuels, protect the environment and achieve sustainable development

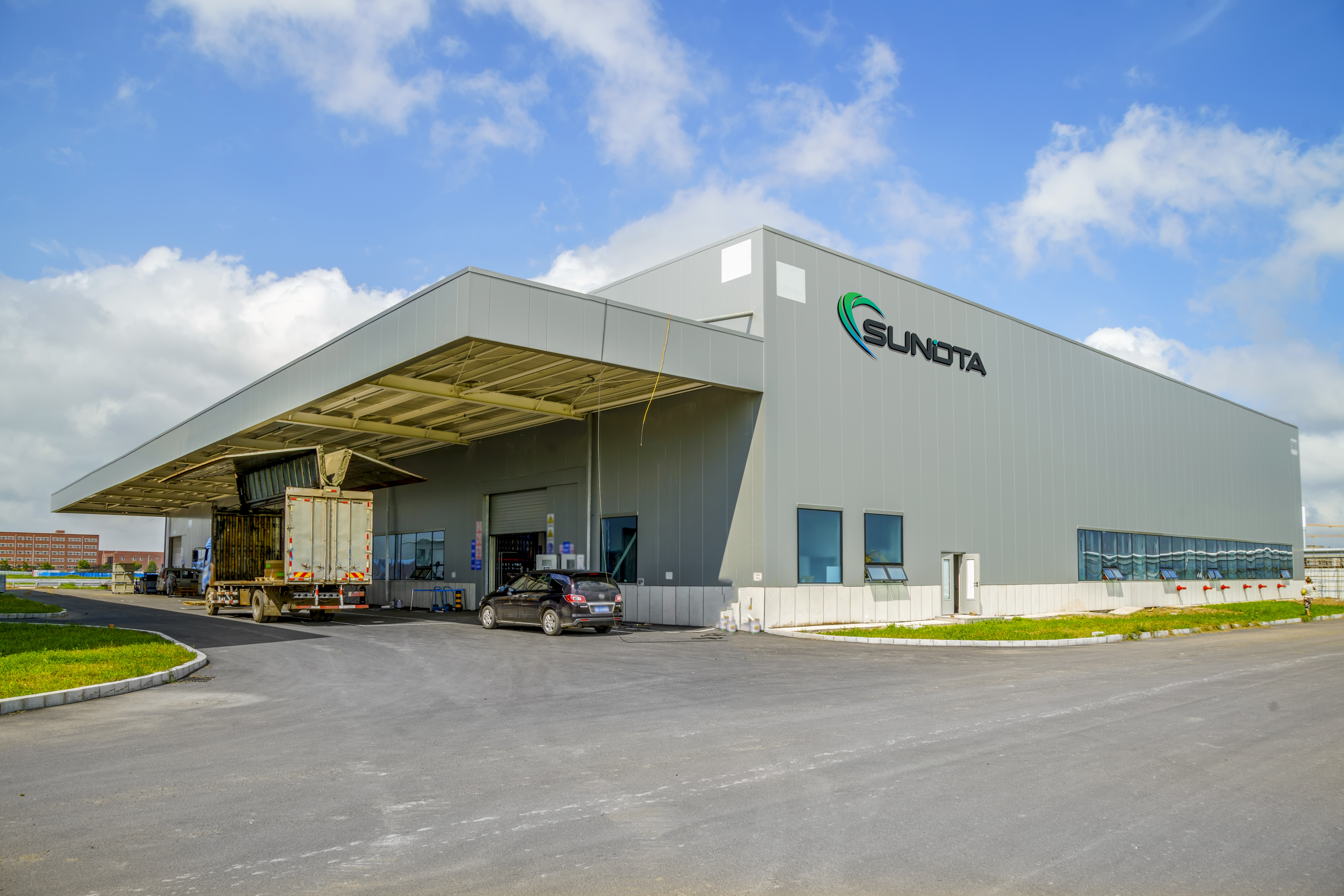

SUNDTA has advanced production equipment and technical teams to provide users with reliable green energy system solutions, annual module production capacity of 2GW with fully automatic production line.

Focus on product quality and innovation, and continuously improve product performance and reliability through continuousresearch and development and improvement.We have been working hard for Making a Renewable future.
