Model:
Power 230 ProLithium Battery :
LiFePO4Warranty:
2.5T
|
Item
|

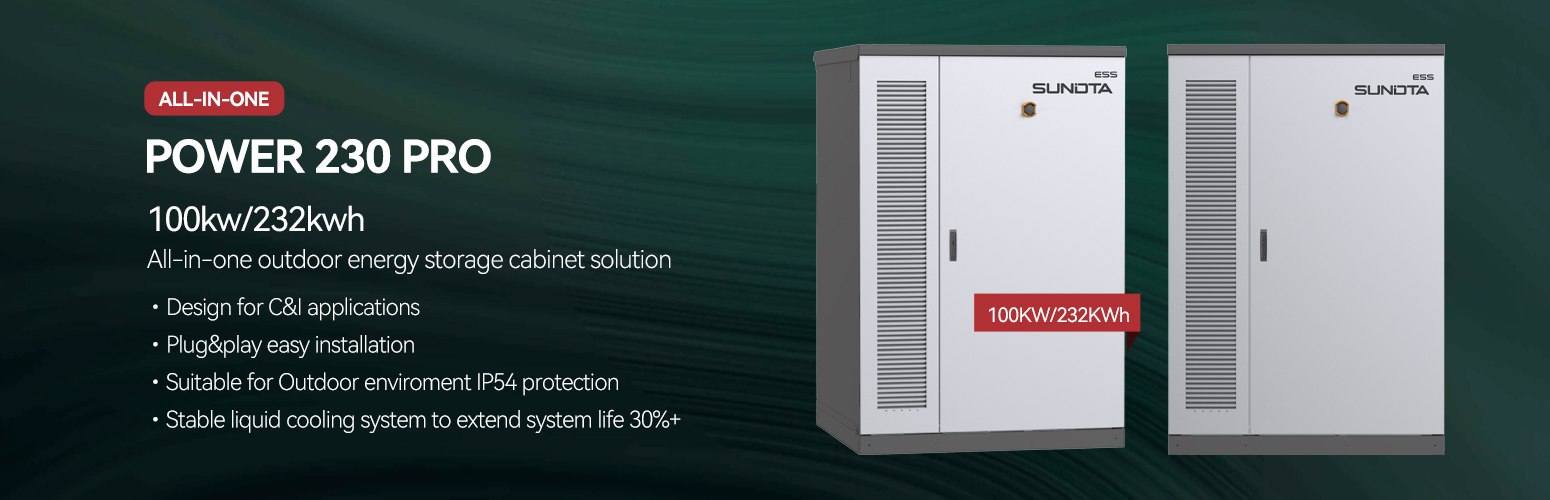

Power 230 Pro
|
|
Inverter
|
|
|
Rated AC power
|
100kW
|
|
Rated AC current
|
144A
|
|
Rated AC voltage
|
3W+PE, 400Vac
|
|
THDI
|
＜5%（Rated power）
|
|
THDU
|
＜3%（Linear loads）
|
|
Battery
|
|
|
Cell type
|
LiFePO4
|
|
Nominal energy
|
232.96kWh
|
|
Nominal capacity
|
280Ah
|
|
Rated voltage
|
832Vdc
|
|
Operating voltage range
|
650Vdc~959Vdc
|
|
Maximum charge-discharge rate
|
0.5P@25℃
|
|
Cycle life
|
＞8000@25℃@0.5C
|
|
System
|
|
|
Communication
|
RS485, CAN, Ethernet
|
|
Cooling method
|
Liquid cooling
|
|
Firefighting
|
Pack+cabinet-level detection inhibition: Suppression medium: aerosol
( standard) /perfluorohexanone ( optional)
|
|
Operation Altitude
|
＜4000m（More than 2000m derating）
|
|
Protection level
|
IP54
|
|

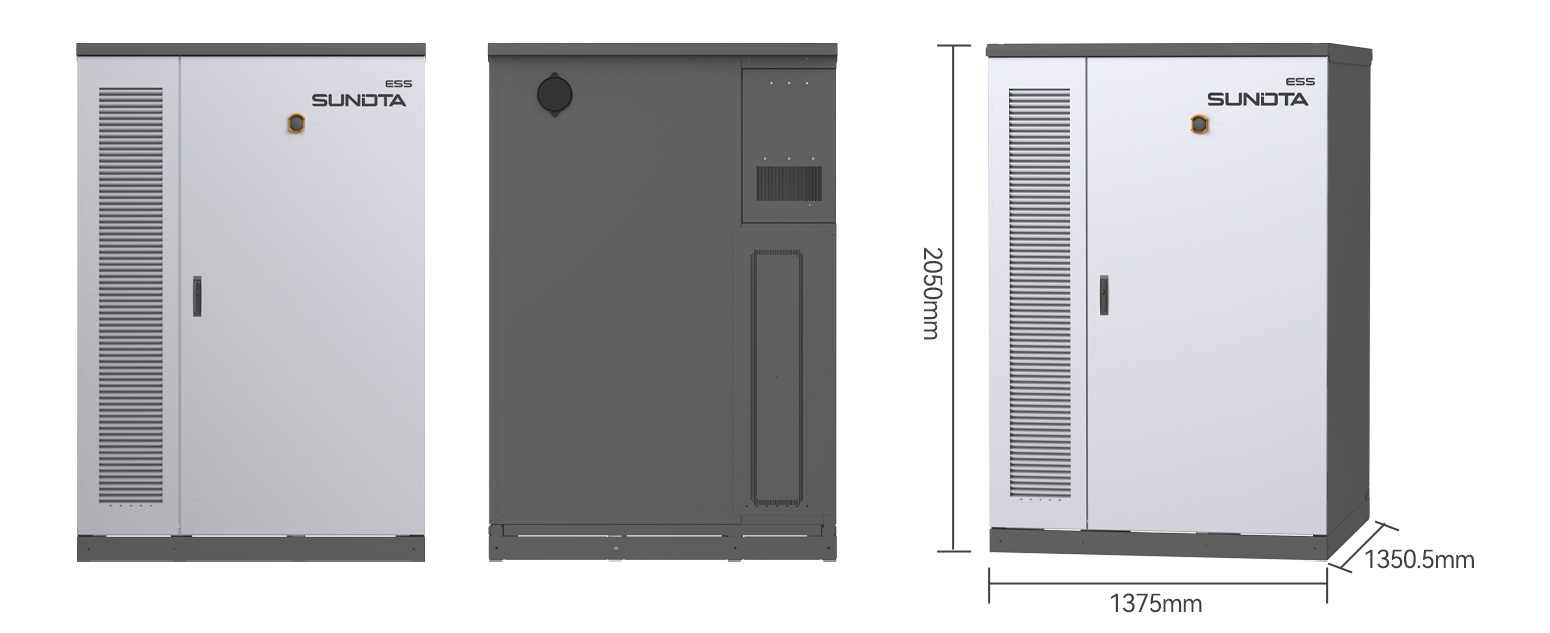

Dimensions( W*D*H)
|
1375*1350.5*2050 mm
|
|
Weight
|
≈2.5T
|
|
Safety Pregulation,EMC
|
IEC62619/CE/UL1973/UL9540A/UN38.3/RoHS/ IEC 61000-6-2: 2019/EN IEC 61000-
6-4: 2019/EN 62109-2: 2011/EN 62109-1: 2010/ IEC 62109-2: 2011/ IEC 62109-1: 201
|
