Model:
SDT720-740-66M-T12JDimension:
2384x1303x35mmWeight:
38.7kgCell Type:
HJTEfficiency:
23.82%Certification:
CE/TUVWarranty:
15 Years

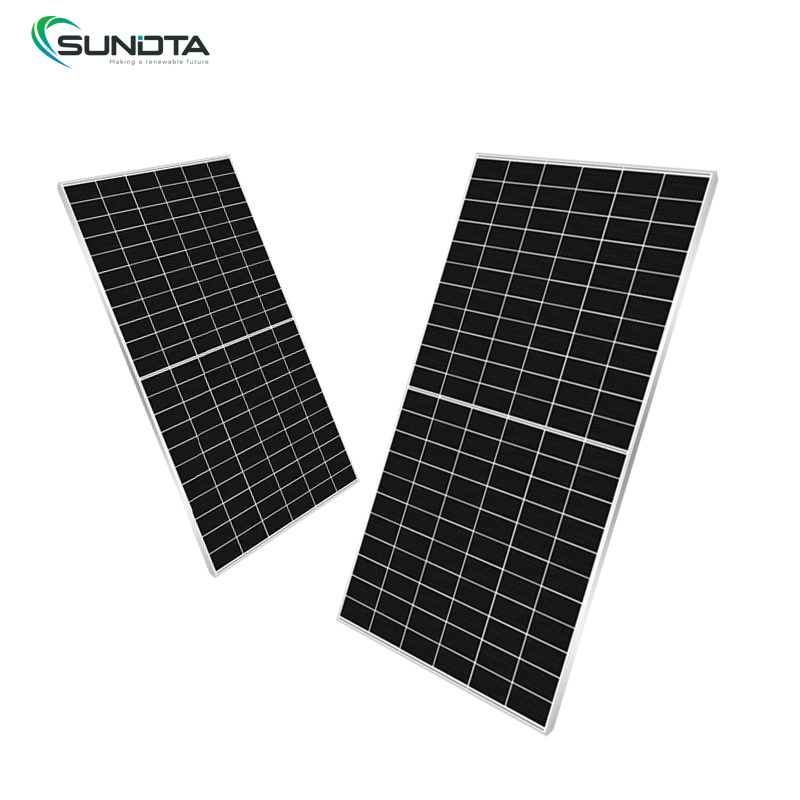

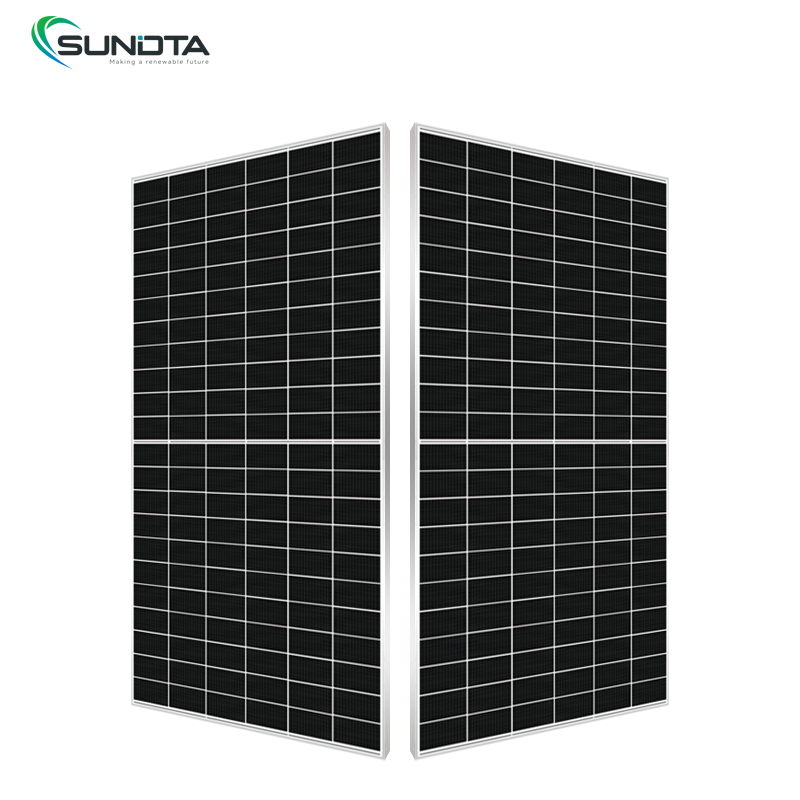

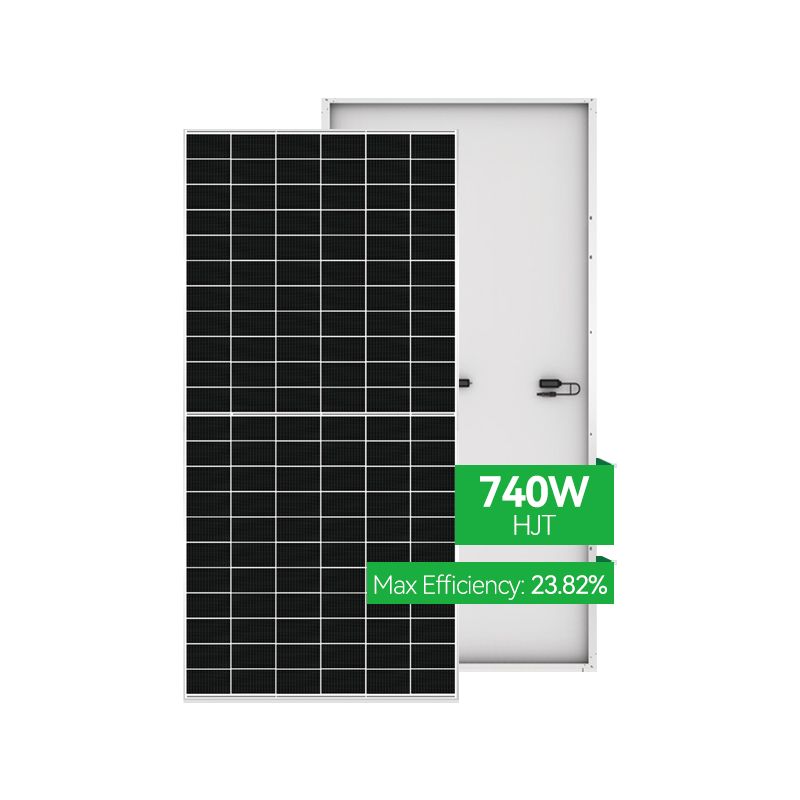

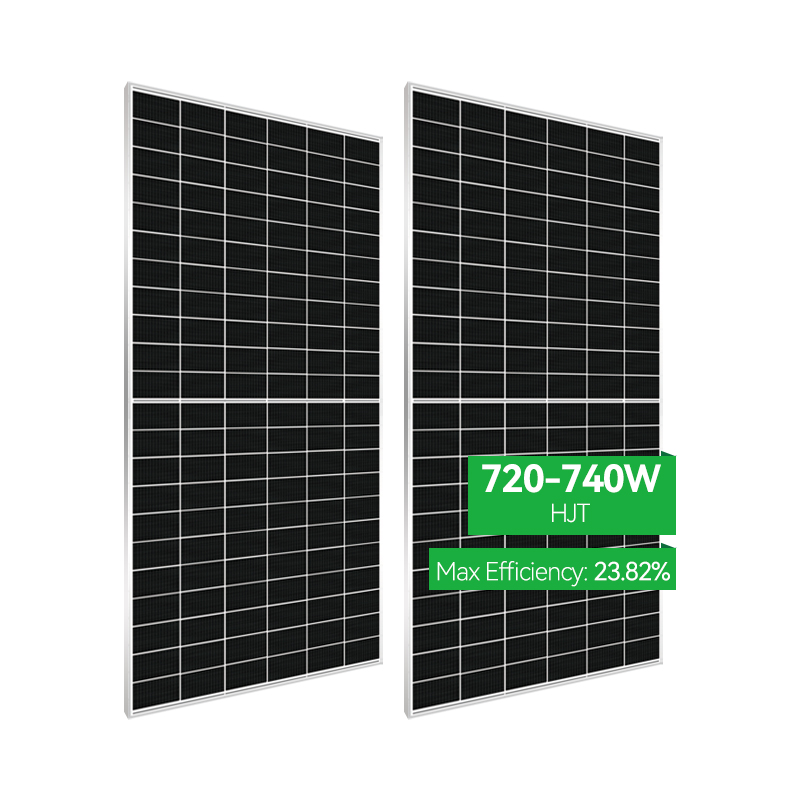

720-740w HJT Higher Efficiency Bifacial Module Solar Panels
| Number of Cells | 132 Cells (6x22) |
| Dimension | 2384x1303x35mm |
| Weight | 38.7kg |

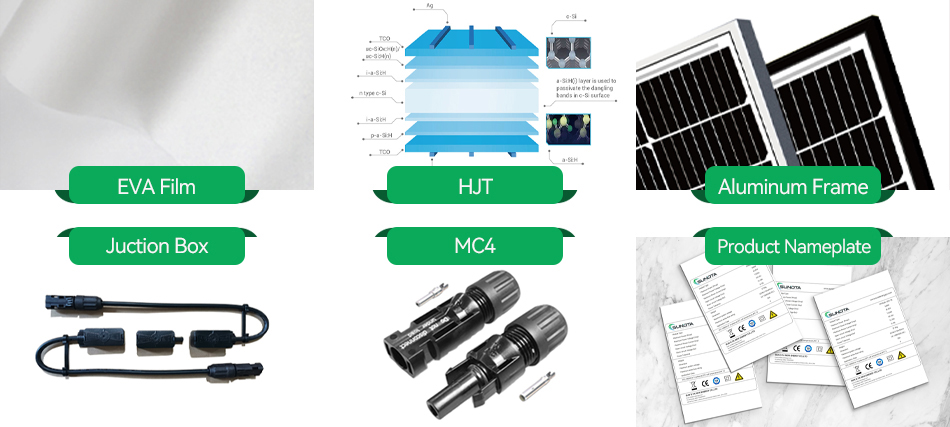

| Glass |
Front Glass:2.0mm High transparency solar glass Back Glass:2.0mm High transparency solar glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated,three diodes |
| Output Cable |
4mm²,300mm in length length can be customized/UV resistant |
| Packaging | 31pcs/pallet, 558pcs/40'HQ |
| Maximum Power(Pmax) | 720W | 725W | 730W | 735W | 740W |
| Maximum Power Voltage(Vmp) | 42.68V | 42.82V | 42.96V | 43.10V | 43.24V |
| Maximum Power Current(Imp) | 16.87A | 16.39A | 16.99A | 17.05A | 17.11A |
| Open-circuit Voltage(Voc) | 50.74V | 50.89V | 51.04V | 51.19V | 51.34V |
| Short-circuit Current(lsc) | 17.67A | 17.73A | 17.79A | 17.85A | 17.91A |
| Module Efficiency(%) | 23.18% | 23.34% | 23.50% | 23.66% | 23.82% |
HJT 2.0 Technology
Combining gettering process and single-side μc-Si technology to ensure higher cell efficiency and higher module power.
-0.26%/℃ Pmax temperature coefficient
More stable power generation performance and even better in hot climate.
SMBB design with Half-Cut Technology
Shorter current transmission distance, less resistive loss andhigher cell efficiency.
Up to 90% Bifaciality
Natrual symmetrical bifacial structure bringing more energy yield from the backside.
Sealing with PlB based sealant
Stronger water resistance, greater air impermeability to extentmodule lifespan.
Higher reliability
Industrial leading product and performance warranty, ensuringmodules' consistent outstanding performance.
Suitable for Utility project
Lower BOS cost, lower LCOE
