3kw 5kw 6kw Solar Max Inverter

3kw 5kw 6kw Solar Max Inverter

1kw 2kw 3kw 4kw 5kVA 6kw Pure Sine Wave off Grid Solar Inverter in Pakistan/Bangladesh/Nigeria 3000W, 12V/24V, USB, Modified Sine Wave Inverter

Output Voltage:
110-220
Max Output power:
6KW
Weight:
25.5KG
Warranty:
3

Inquiry now

Product Details

Solar Inverter

Off Grid Solar Inverters 24V 48V 220V 1kw 3kw 5kw DC to AC PV Solar Inverter

Specification
Model: LS	10212/24	20212/24/48	30224/48	40224/48	50248	60248
Rated Power	1000W	2000W	3000W	4000W	5000W	6000W
Battery Voltage	12/24VDC	12/24/48VDC		24/48VDC	48VDC
Size(LWHmm)	490300130			510320130
Packing Size(LWHmm)	565395225			585415225
N.W.(kg)	11.5	17.5	19.5	21.5	23.5	25.5
G.W.(kg) （Carton Packing）	13	19	21	23	25	27
Parameter
Input	DC Input Voltage Range	10.5-15VDC（Single battery voltage）
	AC Input Voltage Range	85VAC~138VAC /89VAC~144VAC / 93VAC~150VAC / 170VAC~275VAC / 178VAC~288VAC
	AC Input Frequency Range	45Hz~65Hz
Output	Efficiency	≥85%
	Output Voltage(Battery Mode)	110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2%
	Output Frequency(Battery Mode)	50/60Hz±1%
	Output Wave(Battery Mode)	Pure Sine Wave
	AC Output Voltage Range	110VAC±10% / 115VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10%
	AC Output Frequency Range	Tracking Automatically
Inside Solar controller (Optional)	Charging Mode	PWM or MPPT
	Charging current	10A,20A,30A,40A,50A,60A
	PV Input Voltage Range	12V System：15V-44V；24V System：30V-44V；48V System：60V-88V
	Max PV Input Voltage (At 25℃)	12V/24V System：50V；48V System：100V
	PV Array Maximum Power	12V System：140W,280W,420W,560W,700W,840W； 24V System：280W,360W,840W,1120W,1400W,1680W； 48V System：560W,1120W,1680W,1120W,2240W,3360W
Working Mode		Battery First/AC First/Saving Energy Mode
AC Charging current（selectable）		0~30A
Transfer Time		≤4ms

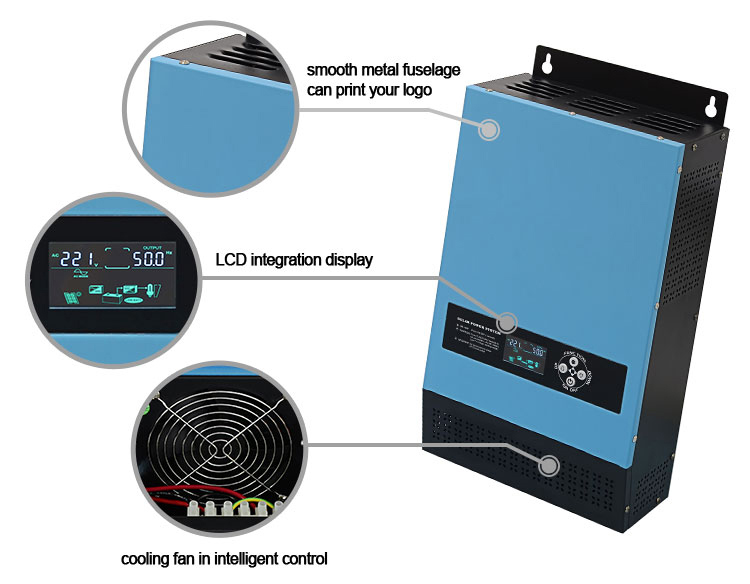

Display		LCD
Thermal method		Cooling fan in intelligent control
Battery Type （selectable）	LEAD	Charge Voltage：14V；Float Voltage：13.8V（Single battery voltage，x2 for 24V; x4 for 48V)
	OP-LE	Charge Voltage：14.2V；Float Voltage：13.8V（Single battery voltage，x2 for 24V; x4 for 48V）
	LITHIUM	Charge Voltage：13V；Float Voltage：12.6V（Single battery voltage，x2 for 24V; x4 for 48V）
	Remark	The charging parameters of other types battery can be user-defined
Protection		Over-load / Over-discharge / Short circuit / High temperayure / Reverse polarity
Communication		RS232/RS485（Optional）
Environment	Noise	≤55dB
	Temperature	-10℃~40℃
	Humidity	0~95%( No condensation)
