off Grid Solar Inverter 3000W 5000W

ip65 3 Phase Smart Dual Output On Grid Hybrid Solar Inverter

off Grid Solar Inverter 3000W 5000W

off Grid Solar Inverter 3000W 5000W Pure Sine Wave Inversor Solis 5000W 48V 5kVA Hybrid Solar Power Inverter 5kw for Home off Grid Solar Inverter

Model:
SNA5000
Output Voltage:
230/240
Max Output power:
5000
PV Input Voltage:
Battery Voltage:
51.2V/48V
Weight:
14kg
Dimension:
60*43*25cm
Display:
Certification:
CE, ROHS
Warranty:
2

Inquiry now

Product Details

off Grid Solar Inverter 3000W 5000W Pure Sine Wave Inversor Solis 5000W 48V 5kVA Hybrid Solar Power Inverter 5kw for Home off Grid Solar inverter

Product Description

Luxpower SNA5000 has very good performance than many other off grid inverters, here are some main features to share with you:
1.Eco Hybrid function: the extra power can feed in Grid by setting( reduce your electricity bill if you have a two-way smart meter).
2.Integrated with 2 MPPT: so you can have larger DC input power(most off grid inverters have only one mppt, not two).
3.Separated generator input port: it is able to control generator remotely.
4.Ready-port for parallel connection: easy to make parallel connection, max up to 16pcs.

Intelligent off grid & hybrid modes
PV & AC power loads simultaneously
Wide PV input voltage range 100V~480V

DC to DC converter easy to use with battery
Free monitoring & remote upgrade
Single phase or unbalanced three phase

Advanced Parallel, up to 16units
Independent generator interface
Host inverter automatically generated to manage entire system
Product Parameters

Model	SNA 3000	SNA 4000	SNA 5000
Output Data
Rated Power	3000W/3000VA	4000W/4000VA	5000W/5000VA
Parallel Capacity	Yes	Yes	Yes
Normal Output Voltage	230/240 Split phase 220/110Vac	230/240 Split phase 220/110Vac	230/240 Split phase 220/110Vac
Normal Output Frequency	50/60Hz	50/60Hz	50/60Hz
Surge Power	6000VA	8000VA	10000VA
Switch Time	10ms	10ms	10ms
Waveform	Pure sine wave	Pure sine wave	Pure sine wave
Battery Data
Battery Type	Lithium/Lead-Acid	Lithium/Lead-Acid	Lithium/Lead-Acid
Normal Voltage	51.2V/48V	51.2V/48V	51.2V/48V
Max. Charge Voltage	59V	59V	59V
Solar Charger Data
Max. Recommend PV Power	6000W	6000W	6000W
MPPT Tracker	2	2	2
Max.PV Open Circuit Voltage	480Vdc	480Vdc	480Vdc
MPPT Voltage Range	100~385Vdc	100~385Vdc	100~385Vdc
Max. Solar Charge Current	100A	100A	100A
Max.MPPT Efficiency	>98%	>98%	>98%
Parallel MPPT Charger	Yes	Yes	Yes
AC Charger Data
Normal Voltage	230Vac	230Vac	230Vac
AC Voltage Range	110~280Vac	110~280Vac	110~280Vac
Max. Charge Current	60A	60A	60A
Frequency Range	50/60(Auto Sensing)	50/60(Auto Sensing)	50/60(Auto Sensing)
General Data
Dimensions(W/H/D)	504x330x135mm	504x330x135mm	504x330x135mm
Weight	14Kg	14Kg	14Kg
Protection Degree	IP20	IP20	IP20
Relative Humidity	5%~95% Relative Humidity(Non-condensing)
Operating Temperature	0~50°C	0~50°C	0~50°C
Storage Temperature	-15°C~60°C	-15°C~60°C	-15°C~60°C
Interfaces
Display	LCD+LED	LCD+LED	LCD+LED
Lithium Battery Communication	CAN/RS485	CAN/RS485	CAN/RS485
RS485/Dry Connector	Yes/Yes	Yes/Yes	Yes/Yes
Wifi/GPRS	Yes/Yes	Yes/Yes	Yes/Yes
Warranty	2 Years	2 Years	2 Years

Off Grid Inverter Application

Solutions
With thousands of hybrid inverters & AC units installed around the world.

Lux power has stepped even futher to bringing power to every home, with or without grid power.

ECO Hybrid SNA 3-5K is now available for homes looking for steady power supply.

Inquire your local distributor, re-organize your power at home. No more blackouts.

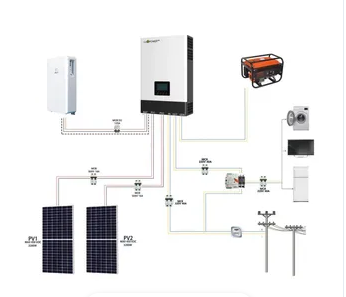

Off Grid Inverter Working Modes

SNA5000 serial off grid inverter can support the dc to dc converter system to work as a backup power or a replacement of diesel generator. Since the inverter support paralleling function, the capacity of system can range from 3kW to 50kW. The inverter support DC DC converter working modes.

Pure Off-grid working mode: Working as a traditional off grid inverters, can set output to utility first, battery first or solar first.

Hybrid working mode: Working as a DC DC converter hybrid, support solar and utility jointly take the load, can set to self consumption mode or charge priority node.
