Model:
JKM555M-72HL4-BDVPRated Power:
555WDimension:
2278*1134*30mmWeight:
31kgNo. Of Cells:
144Cell Type:
P type Mono-crystallineModule Color:
white frameEfficiency:
21.48%Certification:
CE/TUVWarranty:
25 Years

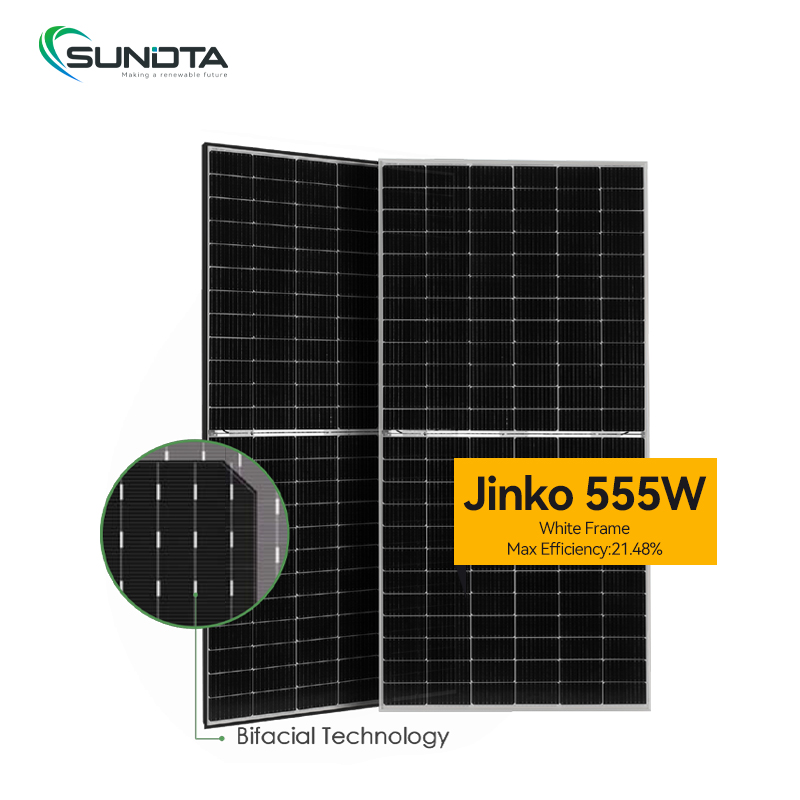

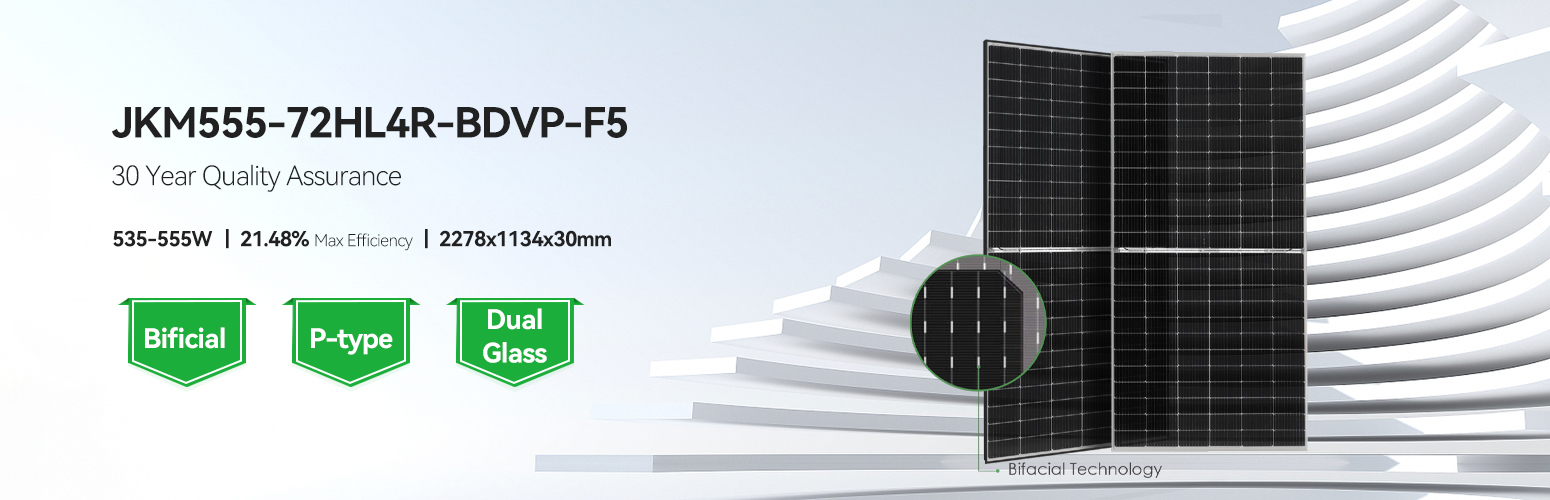

Jinko White Frame 555w Solar Module with Bifacial Technology
Jinko 555w solar panel has these features:
Multi Busbar Technology
Longer Life-time Power Yield
PID Resistance
Enhanced Mechanical Load
Higher Power Output
| SPECIFICATIONS | |||||
| Module Type | JKM535M-72HL4-BDVP | JKM540M-72HL4-BDVP | JKM545M-72HL4-BDVP | JKM550M-72HL4-BDVP | JKM555M-72HL4-BDVP |
| STC | STC | STC | STC | STC | |
| Maximum Power(Pmax) | 535Wp | 540Wp | 545Wp | 550Wp | 555Wp |
| Maximum Power Voltage (Vmp) | 40.94V | 41.13V | 41.32V | 41.51V | 41.7V |
| Maximum Power Curent (Imp) | 13.07A | 13.13A | 13.19A | 13.25V | 13.31A |
| Open-circuit Voltage(Voc) | 49.54V | 49.73V | 49.92V | 50.11V | 50.30V |
| Short-circuit Current (Isc) | 13.83A | 13.89A | 13.95A | 14.01A | 14.07A |
| Module Efficiency STC(%) | 21.71% | 20.90% | 21.10% | 21.29% | 21.48% |
| Operating Temperature(C) | -40℃~+85℃ | ||||
| Maximum system voltage | 1500VDC(IEC) | ||||
| Maximum series fuse rating | 30A | ||||
| Power tolerance | 0~+3% | ||||
| Temperature coefficients of Pmax | -0.35%/℃ | ||||
| Temperature coefficients of Voc | －0.28%/℃ | ||||
| Temperature coefficients of Isc | 0.048%/℃ | ||||
| Nominal operating cell temperature (NOCT） | 45±2℃ | ||||
| Cell Type | P type Mono-crystalline | ||||
| No.of cells | 144(6*24) | ||||
| Dimensions | 2278x1134x30mm(89.69x44.65x1.18inch) | ||||
| Weight | 31kg(68.34lbs) | ||||
| Front Glass |
2.0mm,Anti-Reflection Coating, 2.0mm, heat strengthened glass |
||||
| Frame | Anodized Aluminium Alloy | ||||
| Junction Box | IP68 Rated | ||||
| Output Cables | TUV 1x4.0mm，(+):400mm.(-):200mm or Customized Length | ||||
