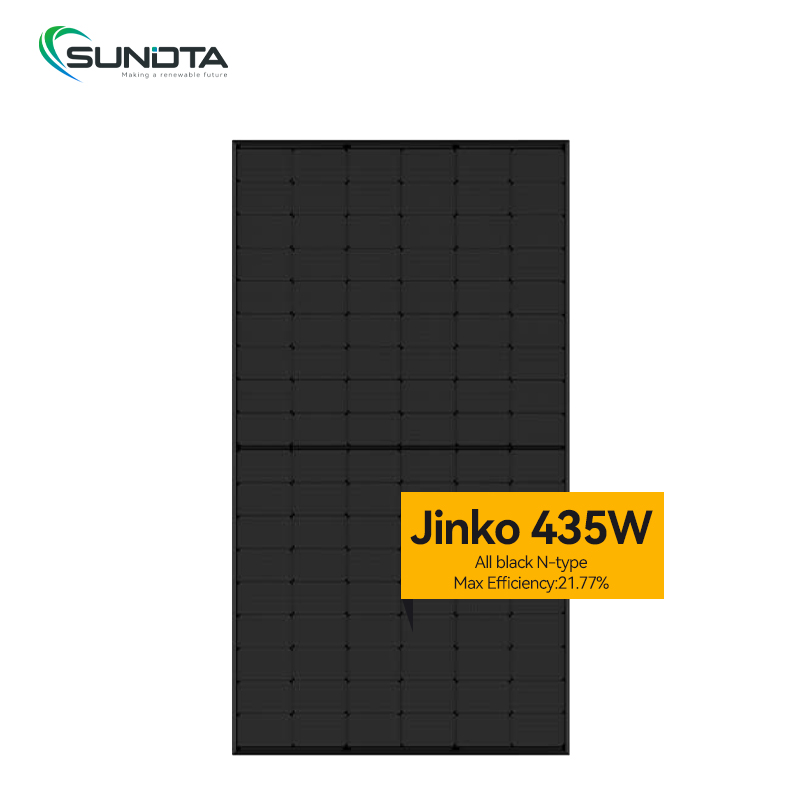

Tire 1 Jinko All Back N-type 435w Solar Panel

Tire 1 Jinko All Back N-type 435w Solar Panel

N-type 54HL4R-B 435w Solar Panel with 25 year warranty

Inquiry now

435w solar panel

Tire 1 Jinko All Back N-type 435w Solar Panel

Jinko 435w solar panel has these features:

SMBB Technology

Hot 2.0 Technology

PID Resistance

Enhanced Mechanical Load

Durability Against Extreme Environmental Conditions

SPECIFICATIONS
Module Type	JKM420N-54HL4R-B	JKM425N-54HL4R-B	JKM430N-54HL4R-B	JKM435N-54HL4R-B	JKM440N-54HL4R-B
	STC	STC	STC	STC	STC
Maximum Power(Pmax)	420Wp	425Wp	430Wp	435Wp	440Wp
Maximum Power Voltage (Vmp)	32.16V	32.37V	32.58V	32.78V	32.99V
Maximum Power Curent (Imp)	13.06A	13.13A	13.20A	13.27V	13.34A
Open-circuit Voltage(Voc)	38.74V	38.95V	39.16V	39.36V	39.57V
Short-circuit Current (Isc)	13.51A	13.58A	13.65A	13.72A	13.80A
Module Efficiency STC(%)	21.02%	21.27%	21.52%	21.77%	22.02%
Operating Temperature(C)	-40℃~+85℃
Maximum system voltage	1000VDC(IEC)
Maximum series fuse rating	25A
Power tolerance	0~+3%
Temperature coefficients of Pmax	-0.29%/℃
Temperature coefficients of Voc	－0.25%/℃
Temperature coefficients of Isc	0.045%/℃
Nominal operating cell temperature (NOCT）	45±2℃
Cell Type	N type Mono-crystalline
No.of cells	108(6*18)
Dimensions	1762x1134x30mm(69.36x44.65x1.18inch)
Weight	21kg(68.34lbs)
Front Glass	3.2mm,Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Frame	Anodized Aluminium Alloy
Junction Box	IP68 Rated
Output Cables	TUV 1x4.0mm，(+):400mm.(-):200mm or Customized Length
